Product Overview

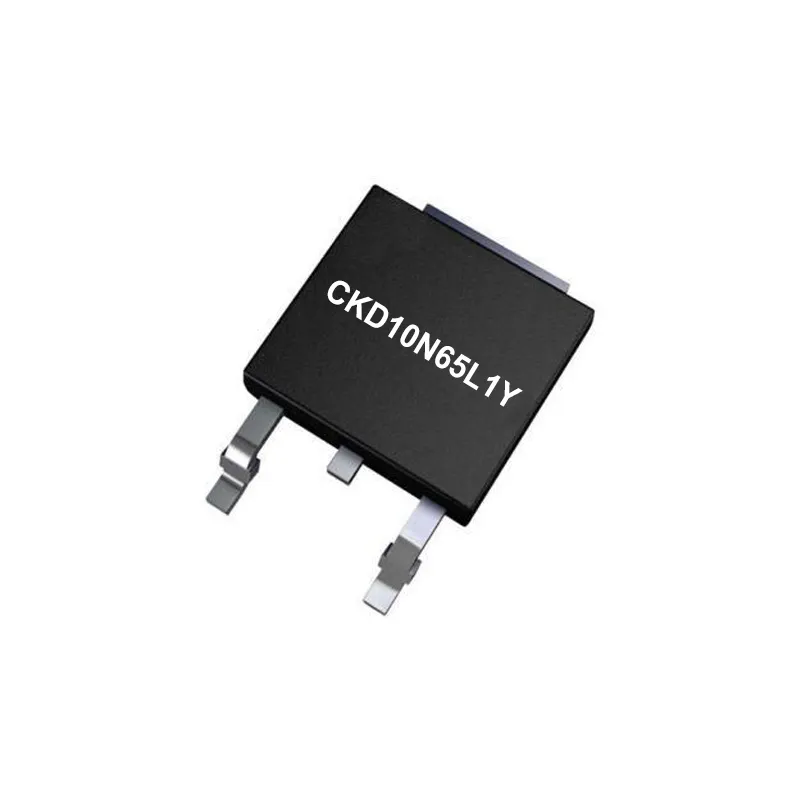

The CKD10N65L1Y is a high-performance 650V, 10A Trench FS (Field Stop) IGBT housed in a TO-252-3L package. This device is designed for efficient power switching in low-frequency applications, offering a robust solution for modern electronic power systems.
Key Parameters
| VCE | 650 V |
| IC (Tj=100°C) | 10 A |
| VCE(sat) (Tj=25°C) | 1.67 V |
Technical Specifications
| Model NO. | CKD10N65L1Y | Cooling Method | Naturally Cooled Tube |
| Function | Switch Transistor | Working Frequency | Low Frequency |
| Structure | IGBT | Encapsulation | Plastic Sealed Transistor |
| Material | Silicon | Max Junction Temp | TJ=175℃ |
| Short-circuit Time | 6μs | Production Capacity | 10000 Pieces/Day |
Key Features
- 6μs of Short-circuit Withstand Time.
- Advanced Trench FS Technology.
- Very Low VCE(sat) for reduced conduction losses.
- Positive Temperature Coefficient in VCE(sat).
- High Ruggedness and Temperature Stable Behavior.
Main Applications
- Motor Control Systems.
- Sewing Machines.
- Home Appliances (Fan, Pump, Vacuum Cleaner).
- Hard Switching Applications.

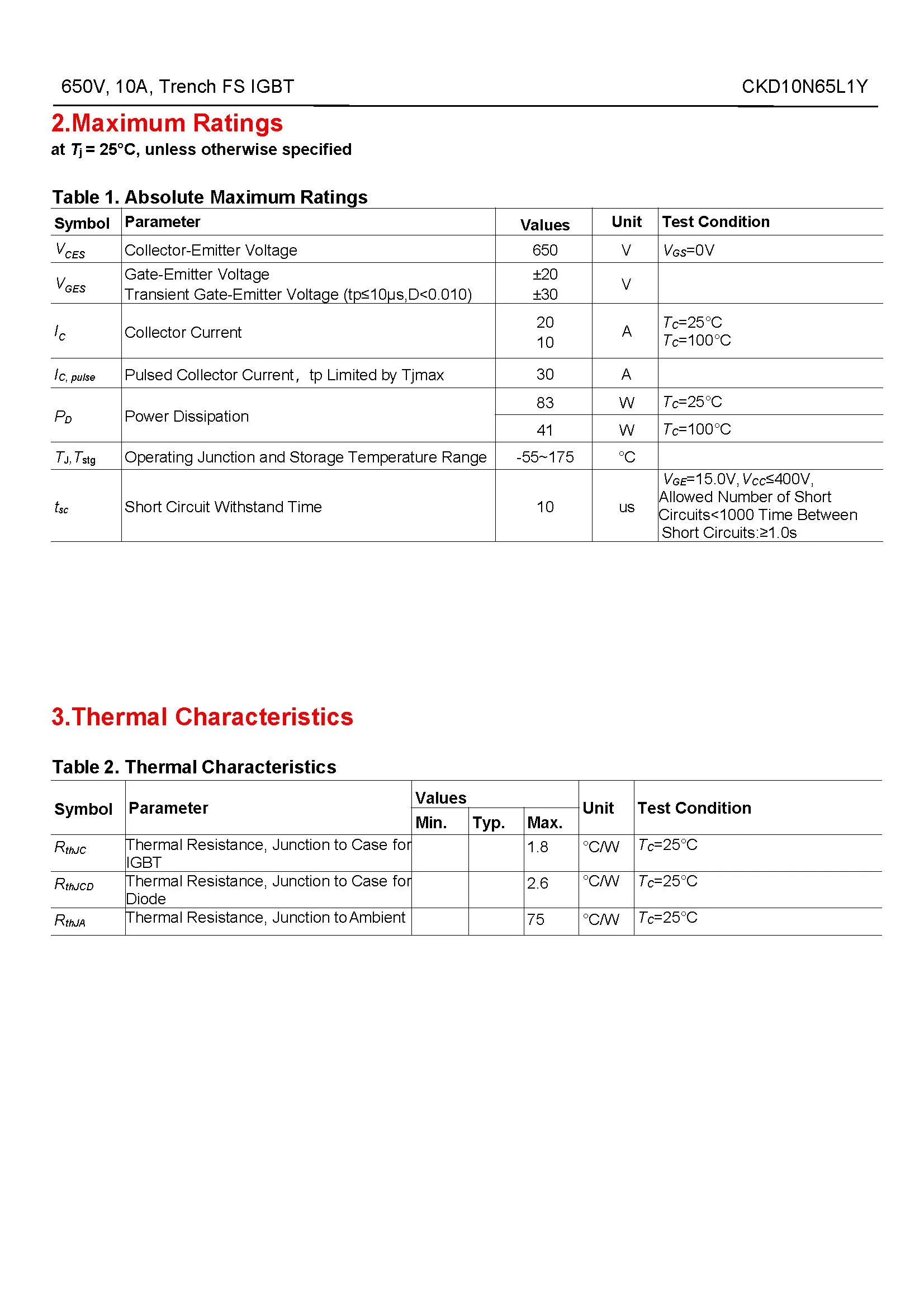

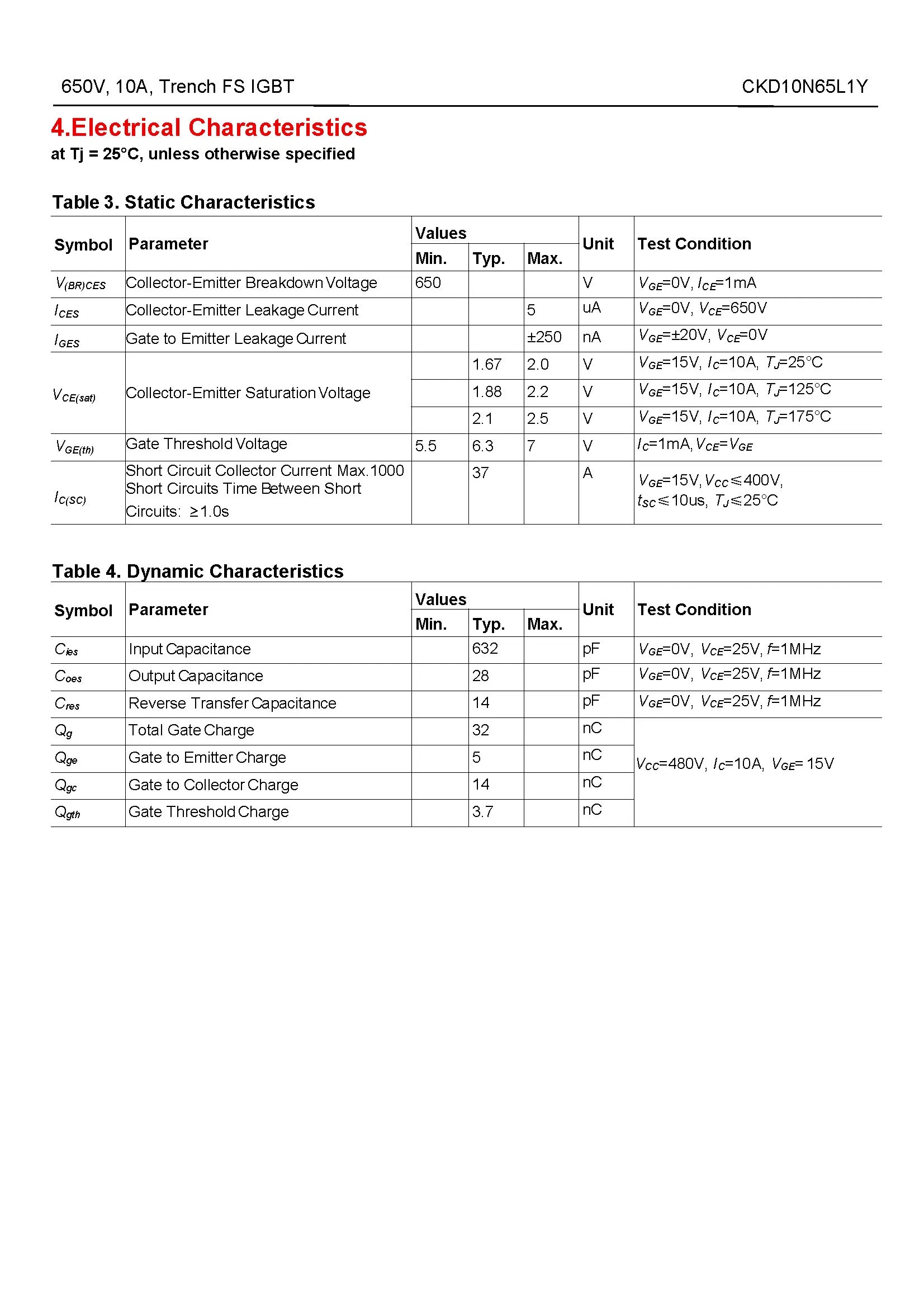

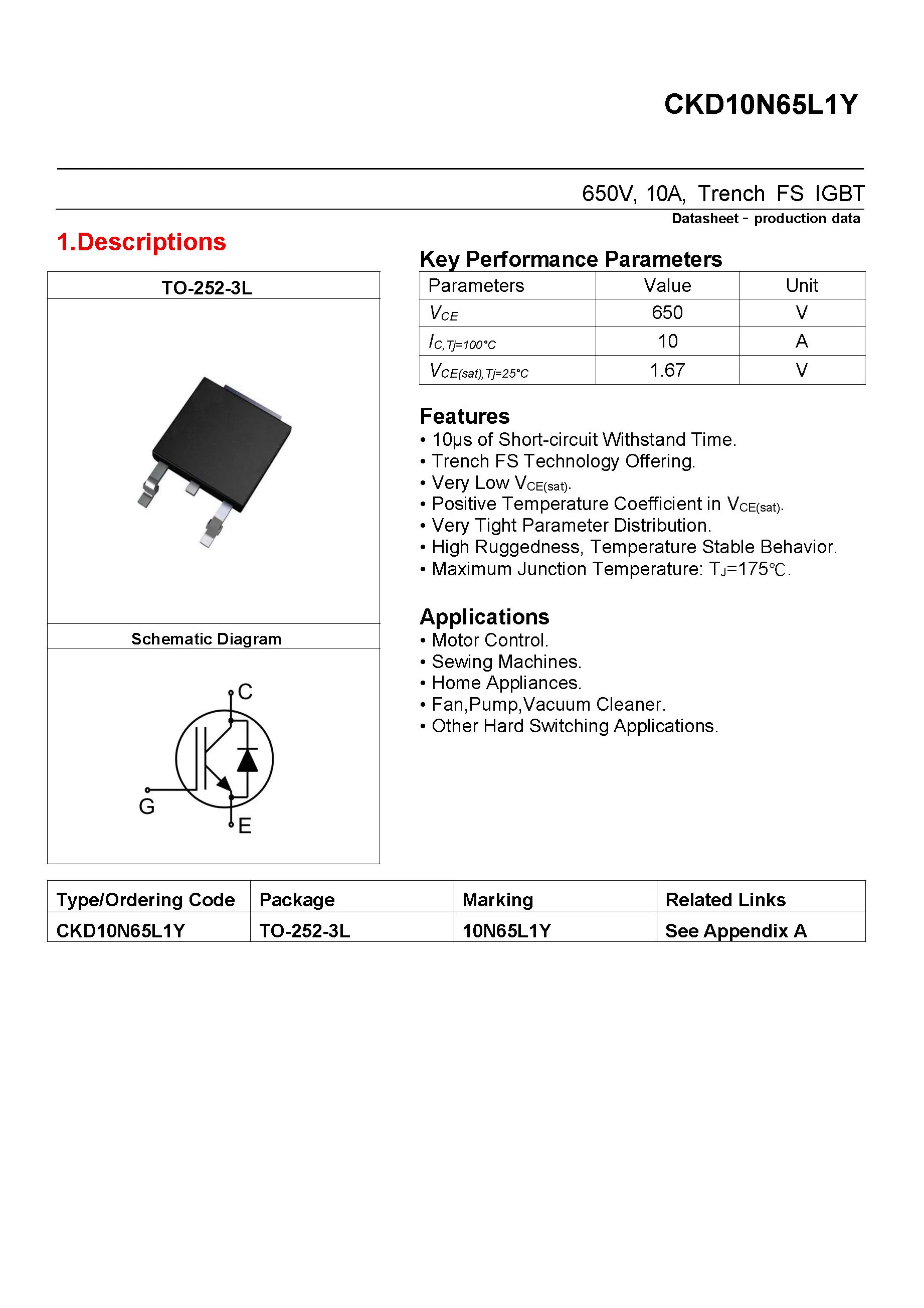

Detailed Data Analysis
Product Gallery
