Basic Information
Model NO.
FMG1AE THRU FMG1JE
Shielding Type
Remote Cut-Off Shielding Tube
Cooling Method
Naturally Cooled Tube
Function
Microwave Transistor
Working Frequency
Low Frequency
Structure
Bridge Rectifiers
Encapsulation
Plastic Sealed Transistor
Production Capacity
10000 Pieces/Day
Product Specification

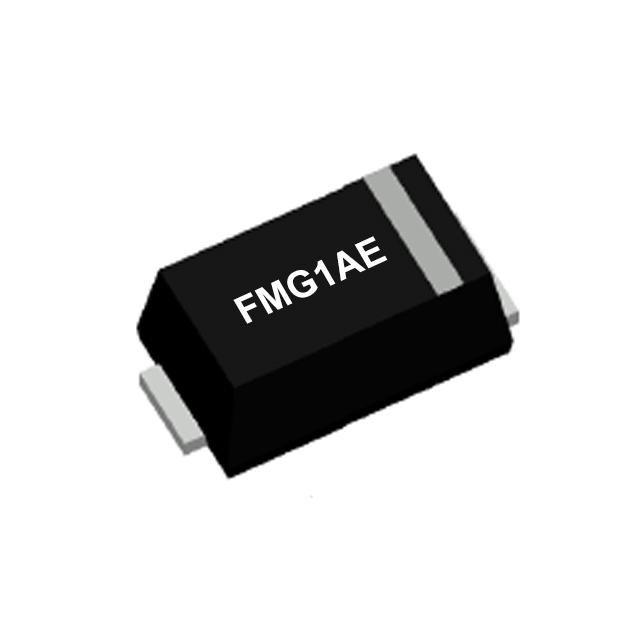

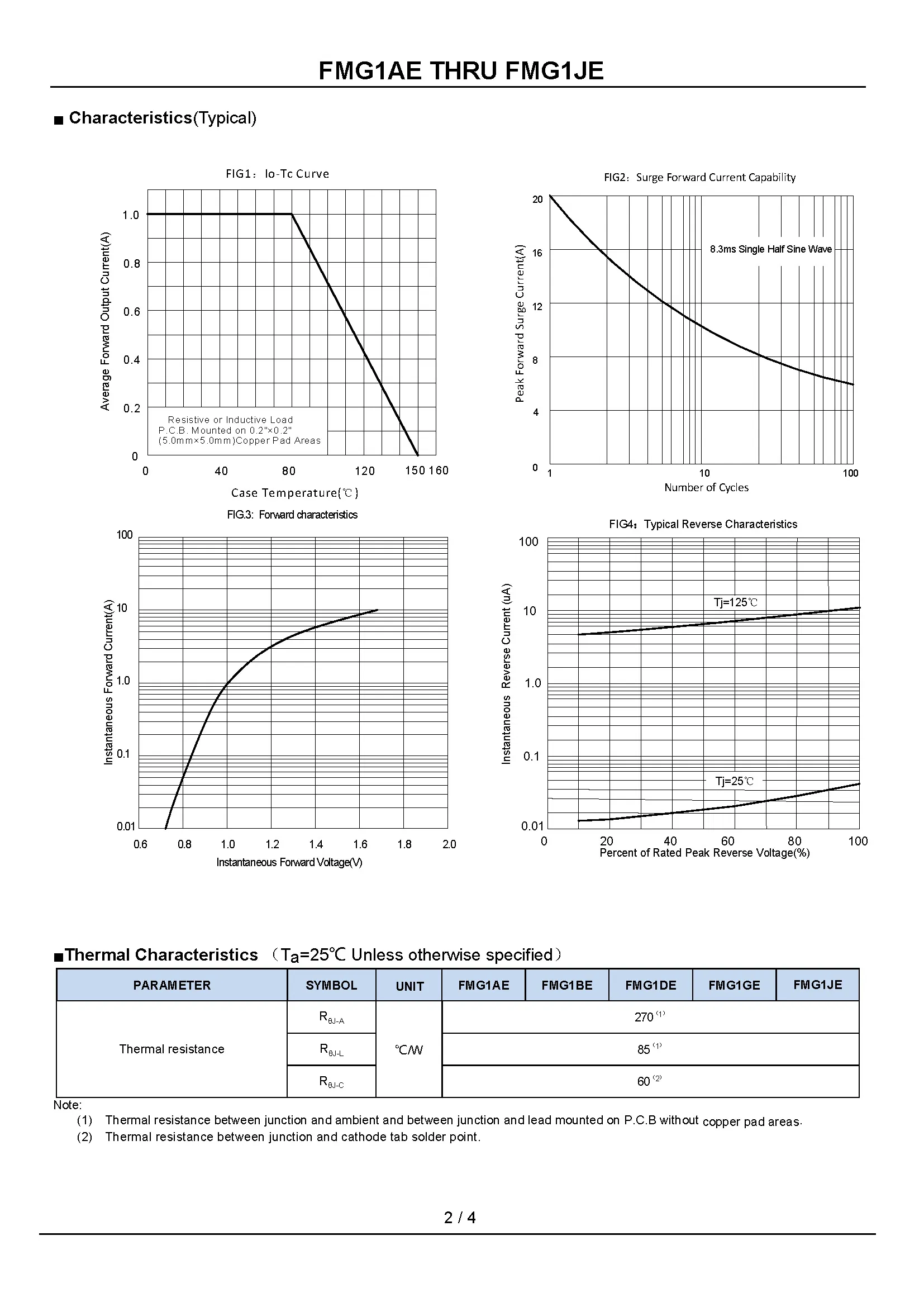

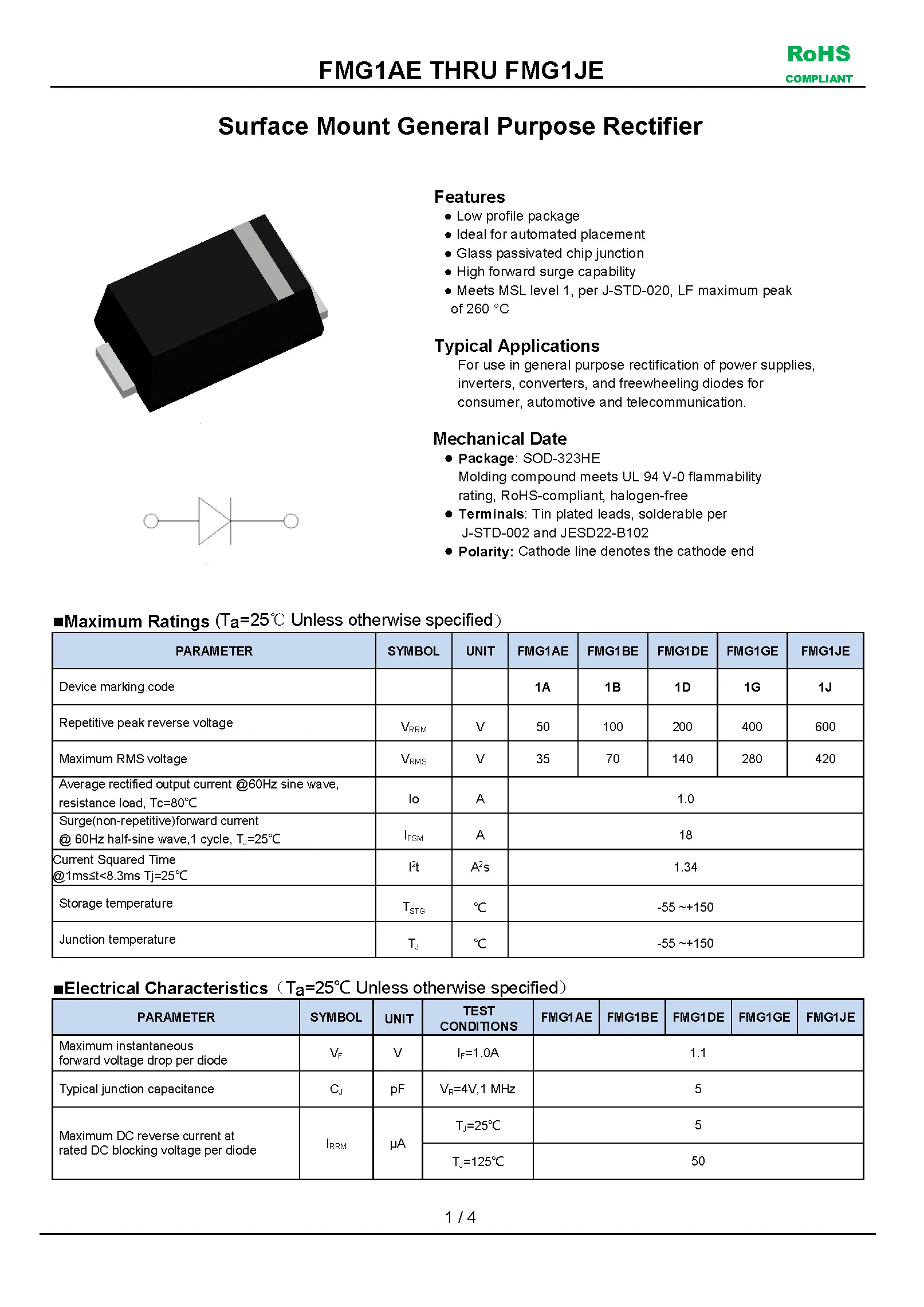

FMG1AE THRU FMG1JE Surface Mount General Purpose Rectifier
Features:
- Low profile package
- Ideal for automated placement
- Glass passivated chip junction
- High forward surge capability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
Typical Applications & Mechanical Data
Applications
General purpose rectification of power supplies, inverters, converters, and freewheeling diodes for consumer, automotive and telecommunication.

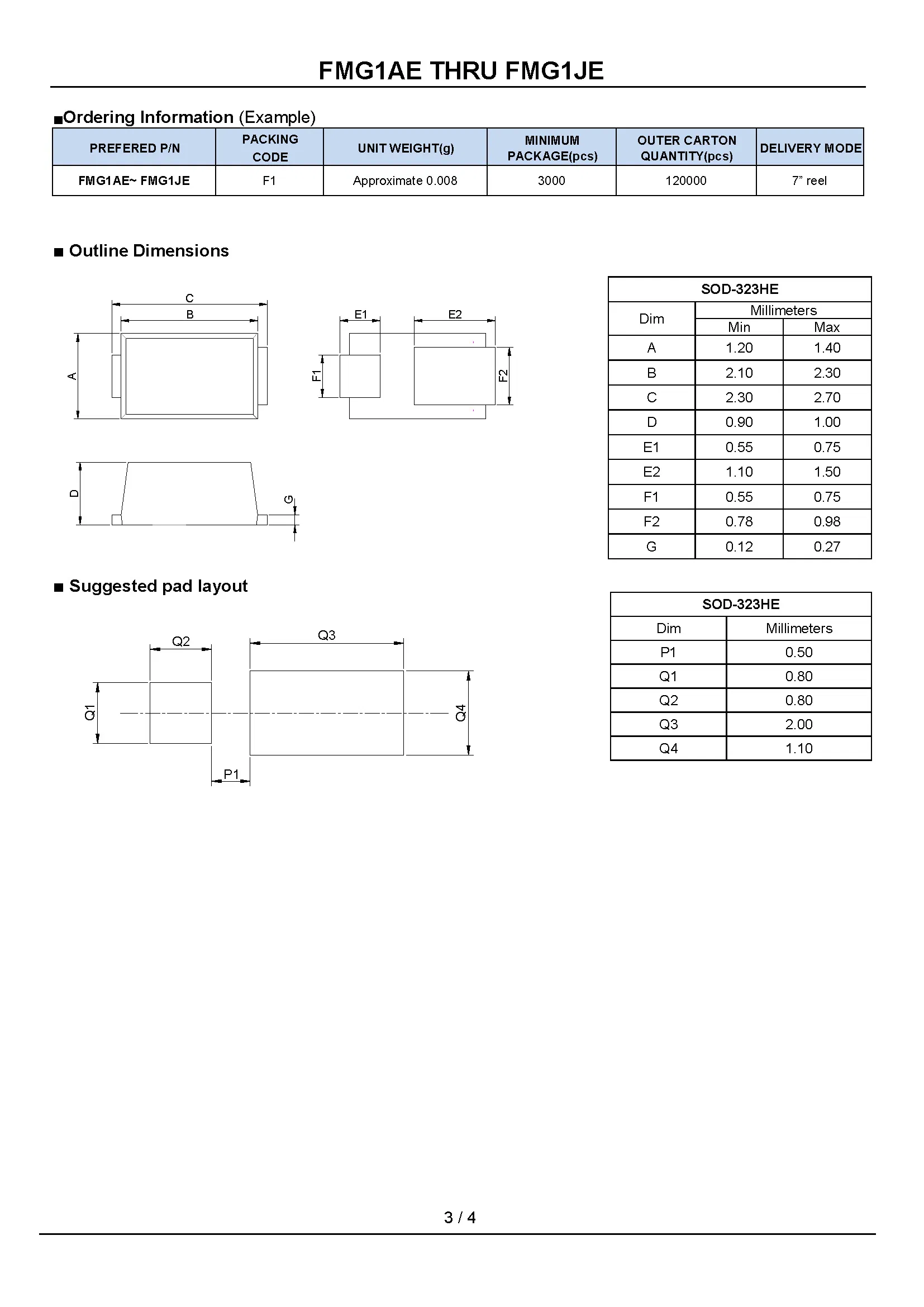

Package
SOD-323HE, UL 94 V-0 flammability rating, RoHS-compliant, halogen-free.
Professional Capability
Established as a professional supplier of semiconductor discrete device sales and technical services. The core product lines include:
- Rectification; Ultra-fast recovery; Schottky; Zener diode; Bridge rectifier
- Low voltage MOS; super junction MOS
- SIC diode; SIC MOSFET
Solutions cover switched mode power supplies (SMPS), computing, motor control and drive, consumer electronics, mobile devices, lighting, and automotive applications.
Frequently Asked Questions
What are the main applications for these rectifiers?
They are ideal for general purpose rectification in power supplies, inverters, converters, and as freewheeling diodes in consumer and automotive electronics.
What services do you provide?
We provide turnkey solutions including R&D, PCB fabrication, SMT, testing, and other value-added semiconductor services.
Can we inspect the quality during the production process?
Yes, we maintain a transparent production process and welcome customers to inspect our facilities and production stages in-house.
What is the standard delivery term?
We offer various terms including EXW, FCA, FOB, and DDU based on the specific requirements of each order.
Is there a Minimum Order Quantity (MOQ)?
No, we do not have a strict MOQ requirement. We support projects ranging from initial prototypes to full mass production.
What files are needed for a quotation?
For PCB/PCBA quotes, please provide Gerber files, a BOM (Bill of Materials), and any specific technical or testing instructions.
