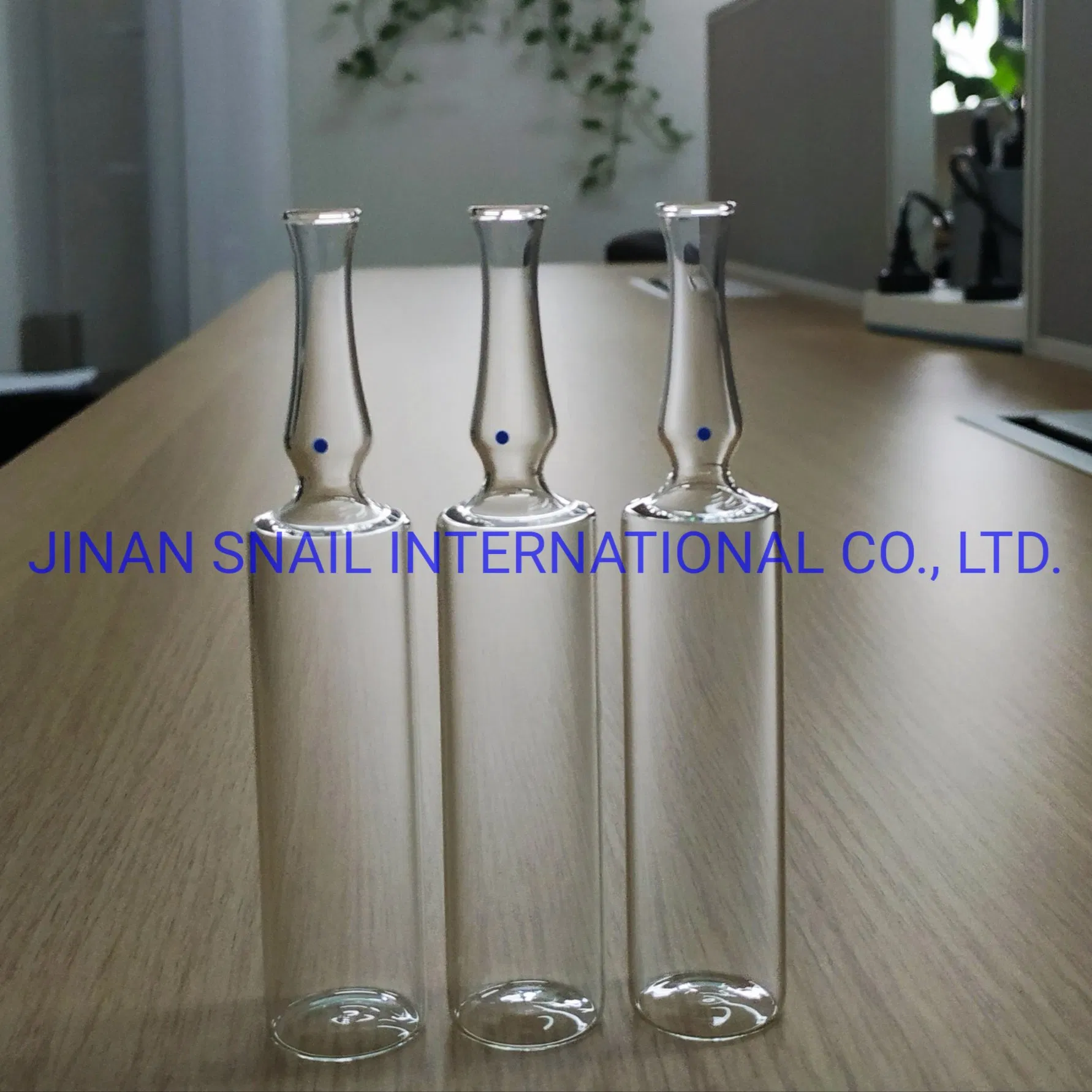

Glass Ampoule ISO Standard/OPC/PP Package

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.:

1ml-20ml

Type:

for Body Injection

Machine:

Horizontal Machine

Glass Type:

Borosilicate Glass 7.0/5.0 or Soda Lime

Application:

Medical

Logo Printing:

Available

Flexibility:

Hard

Technics:

Firework

Transport Package:

Cartons

Specification:

1-10ml

HS Code:

70109090

Capacity:

10000PCS/Year

Product Description

Type: Type B, Type C available
Break System: OPC (One Point Cut), CBR (Color Break Ring - up to 3 rings)
Standard: Compliant with YBB or ISO standards

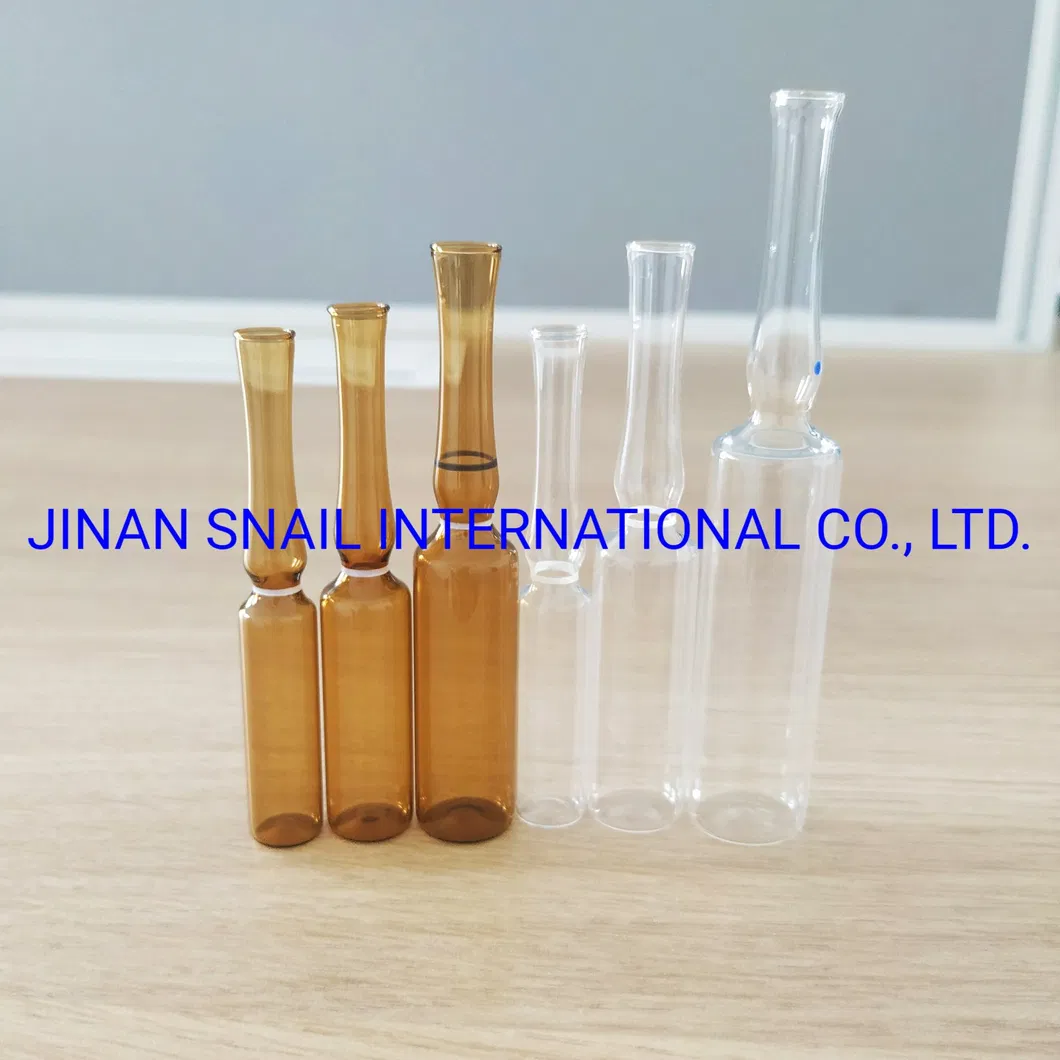

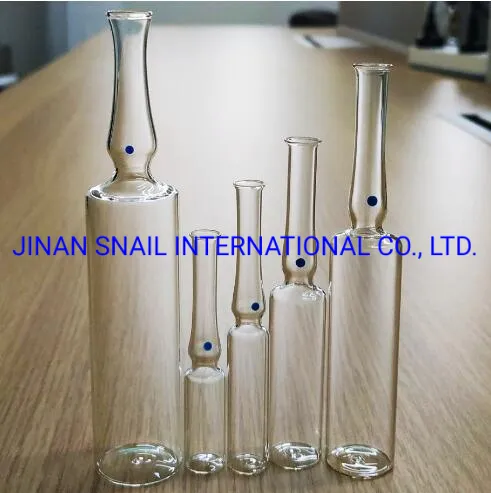

Color Options: Amber or Clear glass
Customization: With or without logo printing

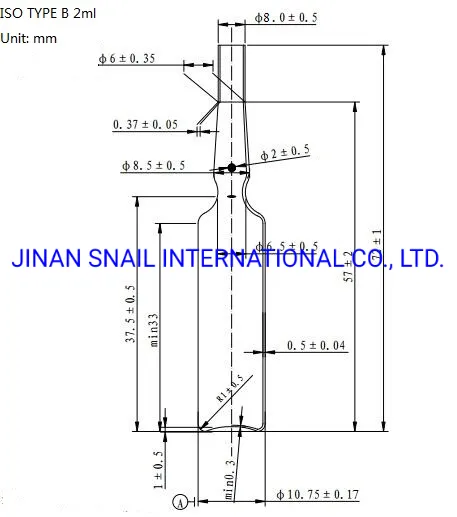

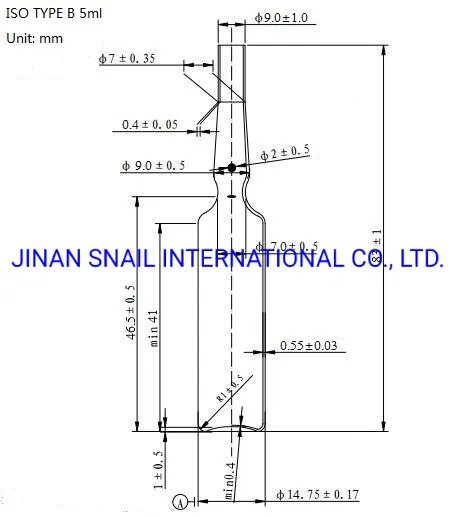

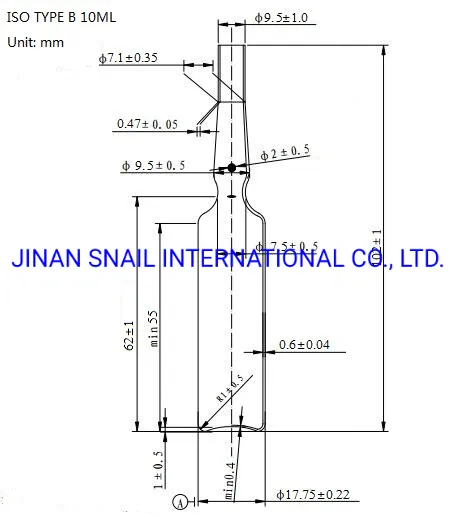

ISO Form B Glass Ampoule Technical Data
Size	Body d1		d2	d3	d4	h1	h4		h5	h6	h7	r	e	w1		w2
1ml	10.75	±0.15	6.50	8.50	6.00	60.00	25.50	±0.50	47.00	21.00	4.50	1.00	1.00	0.50	±0.03	0.37
2ml	10.75	±0.15	6.50	8.50	6.00	72.00	37.50	±0.50	57.00	33.00	4.50	1.00	1.00	0.50	±0.03	0.37
5ml	14.75	±0.17	7.00	9.00	7.00	83.00	46.50	±0.50	68.00	41.00	5.50	1.50	1.00	0.55	±0.04	0.40
10ml	17.75	±0.20	7.50	9.50	7.10	102.0	62.00	±1.00	87.00	55.00	6.00	2.00	1.25	0.60	±0.04	0.47
20ml	22.50	±0.25	8.50	12.00	7.80	113.0	76.00	±1.30	100.0	65.00	6.50	2.50	1.50	0.70	±0.04	0.50

Frequently Asked Questions

What glass materials are used for the ampoules?

We use high-quality Borosilicate glass (7.0 and 5.0) as well as Soda Lime glass, depending on the medical application and chemical resistance required.

What types of break systems do you provide?

Our glass ampoules feature Two main systems: OPC (One Point Cut) and CBR (Color Break Ring) which supports up to 3 color rings for easy identification and safe opening.

Can I customize the ampoules with my company logo?

Yes, we provide logo printing services. You can choose to have the ampoules with or without custom branding.

Which standards do your glass ampoules comply with?

All products are manufactured to meet YBB or ISO international standards for medical-grade primary packaging.

What is the capacity range for these ampoules?

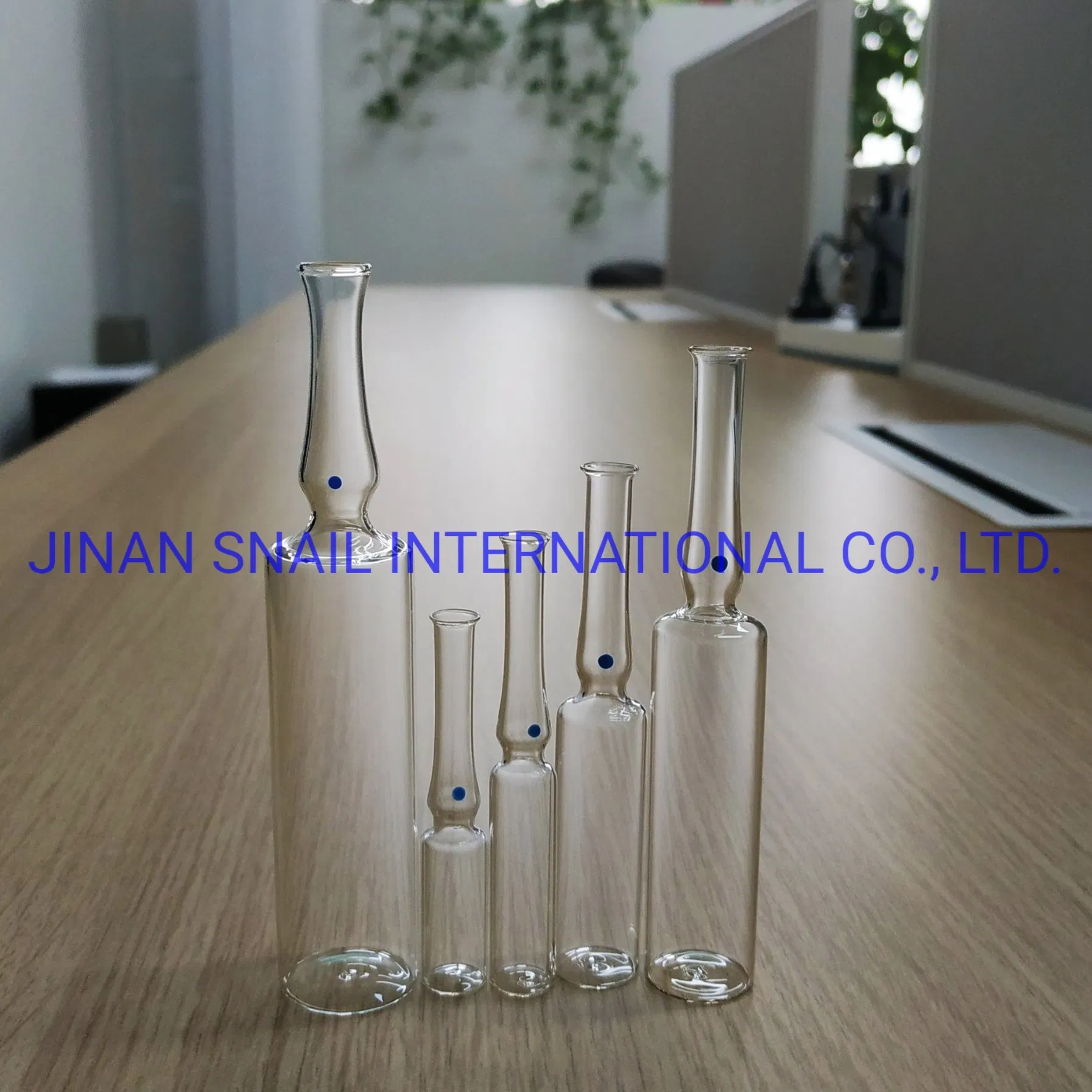

We offer a wide range of sizes including 1ml, 2ml, 5ml, 10ml, and up to 20ml capacities in both amber and clear colors.

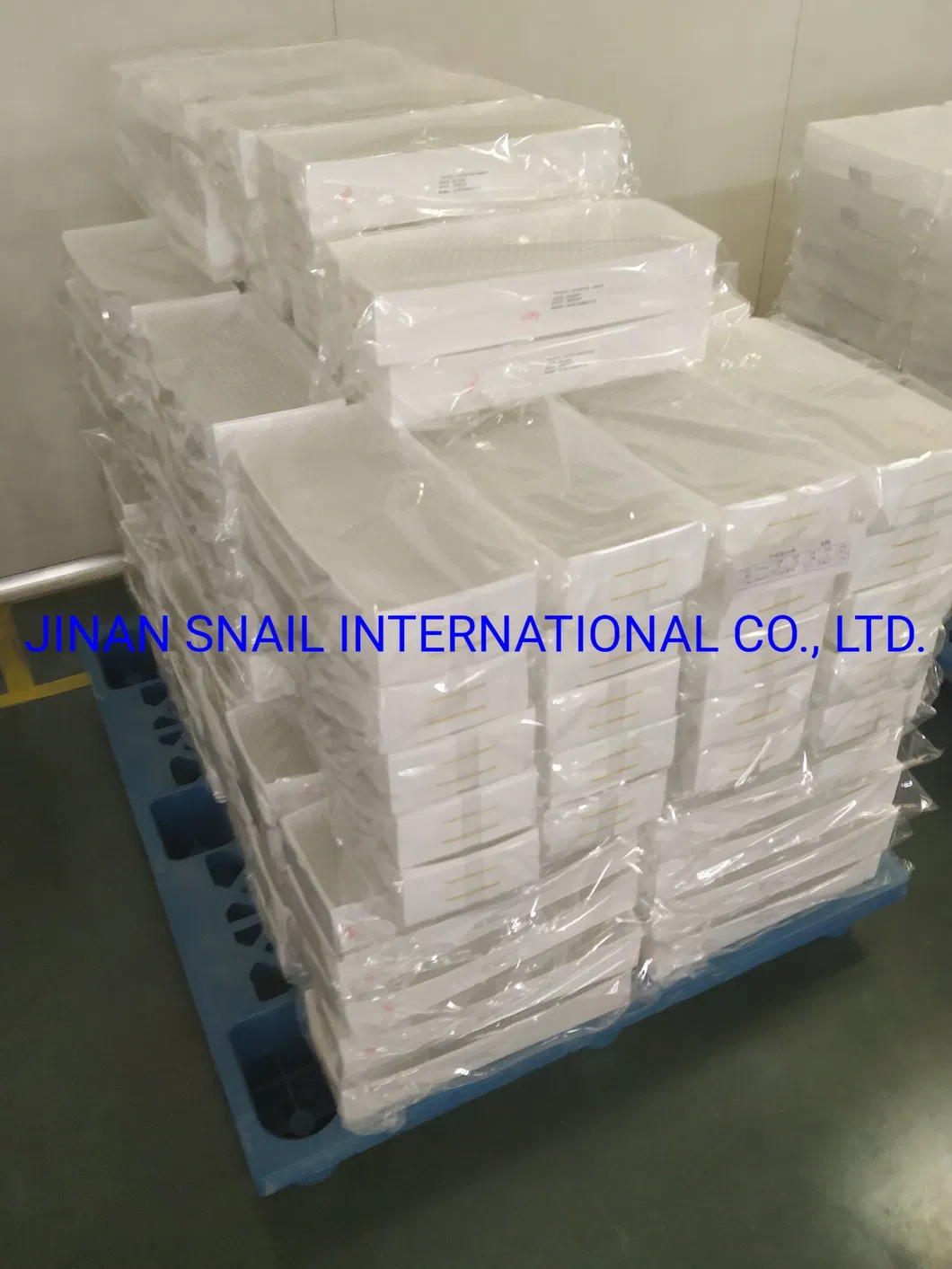

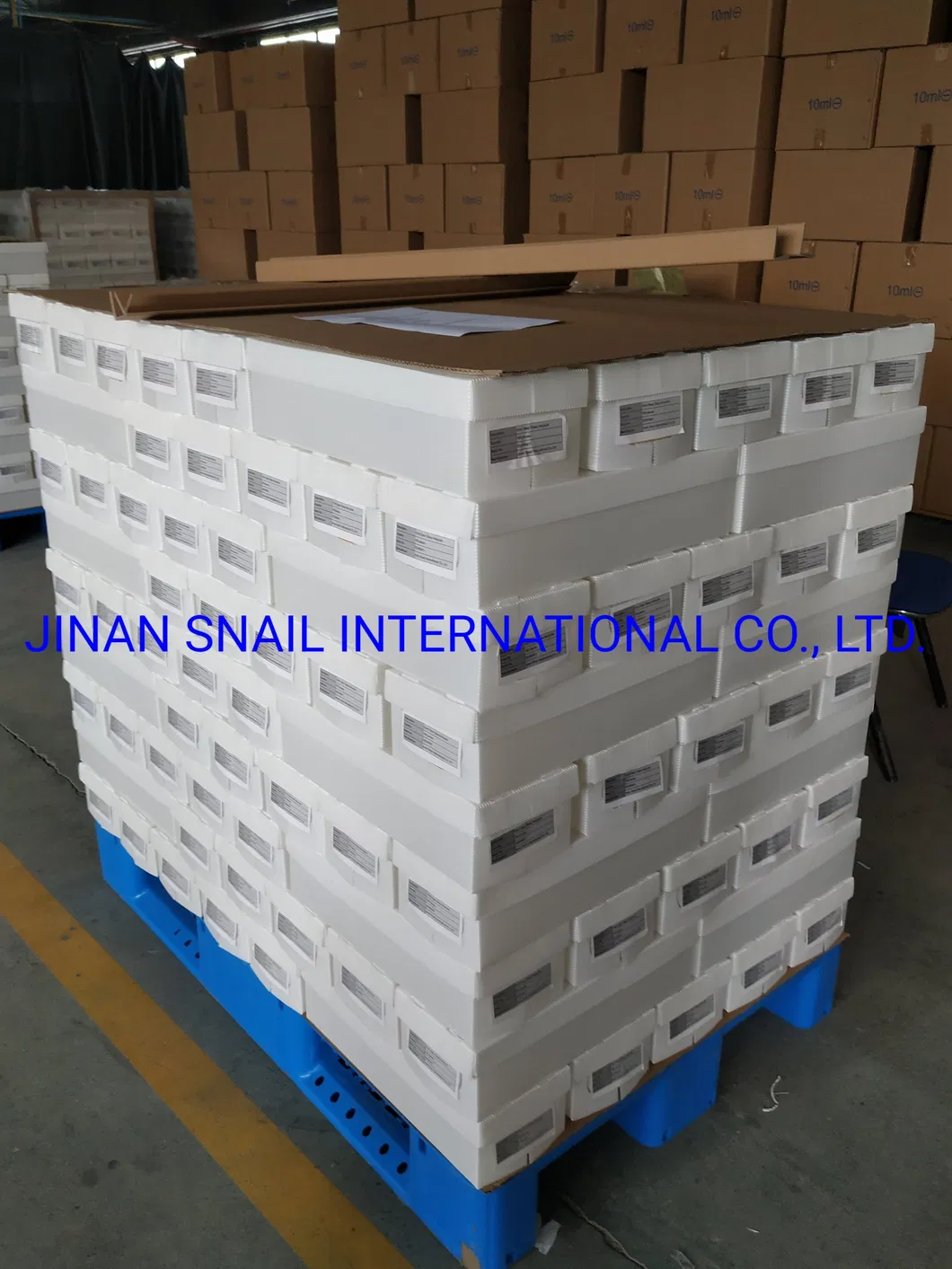

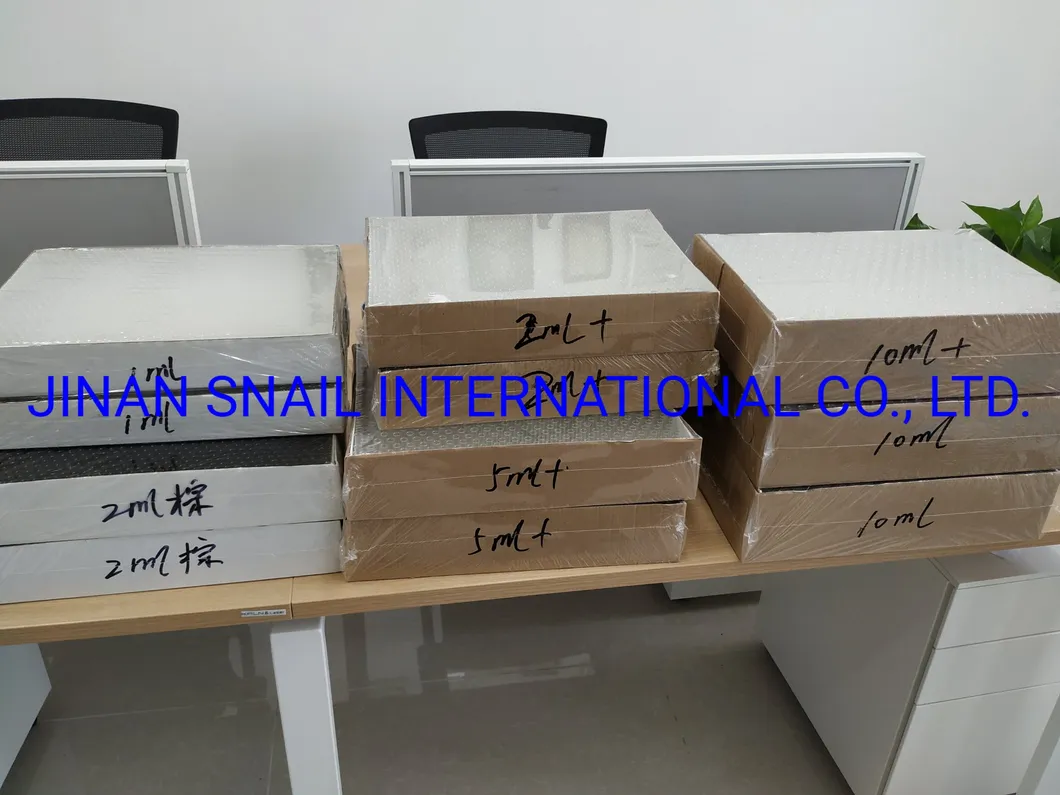

How are the products packaged for transport?

The ampoules are securely packed in sturdy cartons designed for medical glass products to ensure safety and prevent breakage during international shipping.
