High-Performance 500V 7A Nano Series Ipm in Compact Package

1 / 5

High-Performance 500V 7A Nano Series Ipm in Compact Package

Customization:	Available
Certification:	RoHS, CE, ISO, CCC
Shape:	Nano

Send Inquiry

Product Description

Basic Info

Model NO.

CIM07S50C1A1

Cooling Method

Naturally Cooled Tube

Function

Switch Transistor

Working Frequency

Low Frequency

Structure

Ipm

Power Level

Medium Power

Material

Silicon

Voltage (Vdss)

500V

Current (ID)

Origin

Guangdong, China

Product Specification

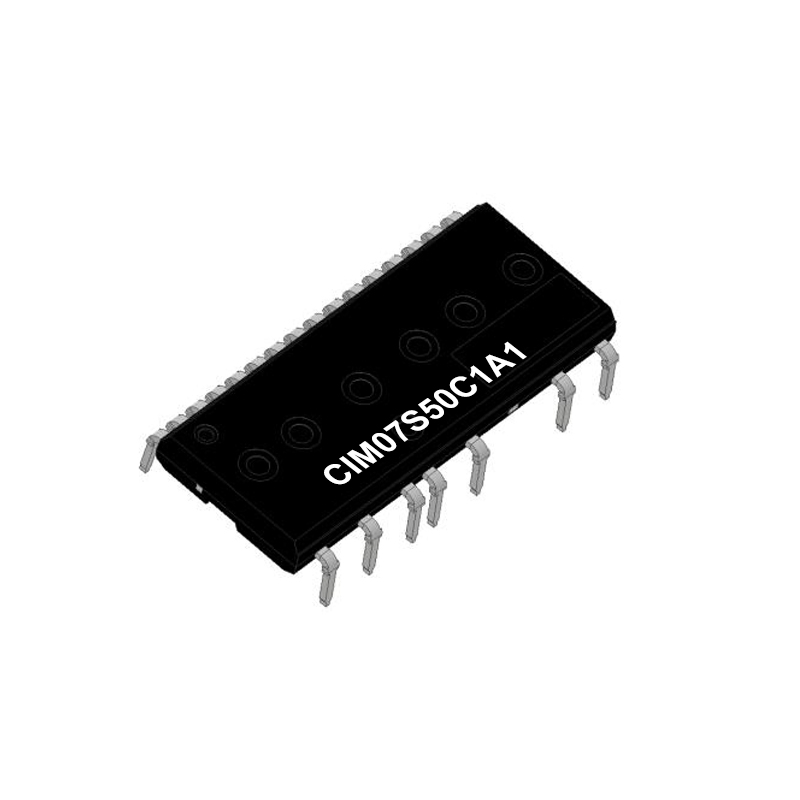

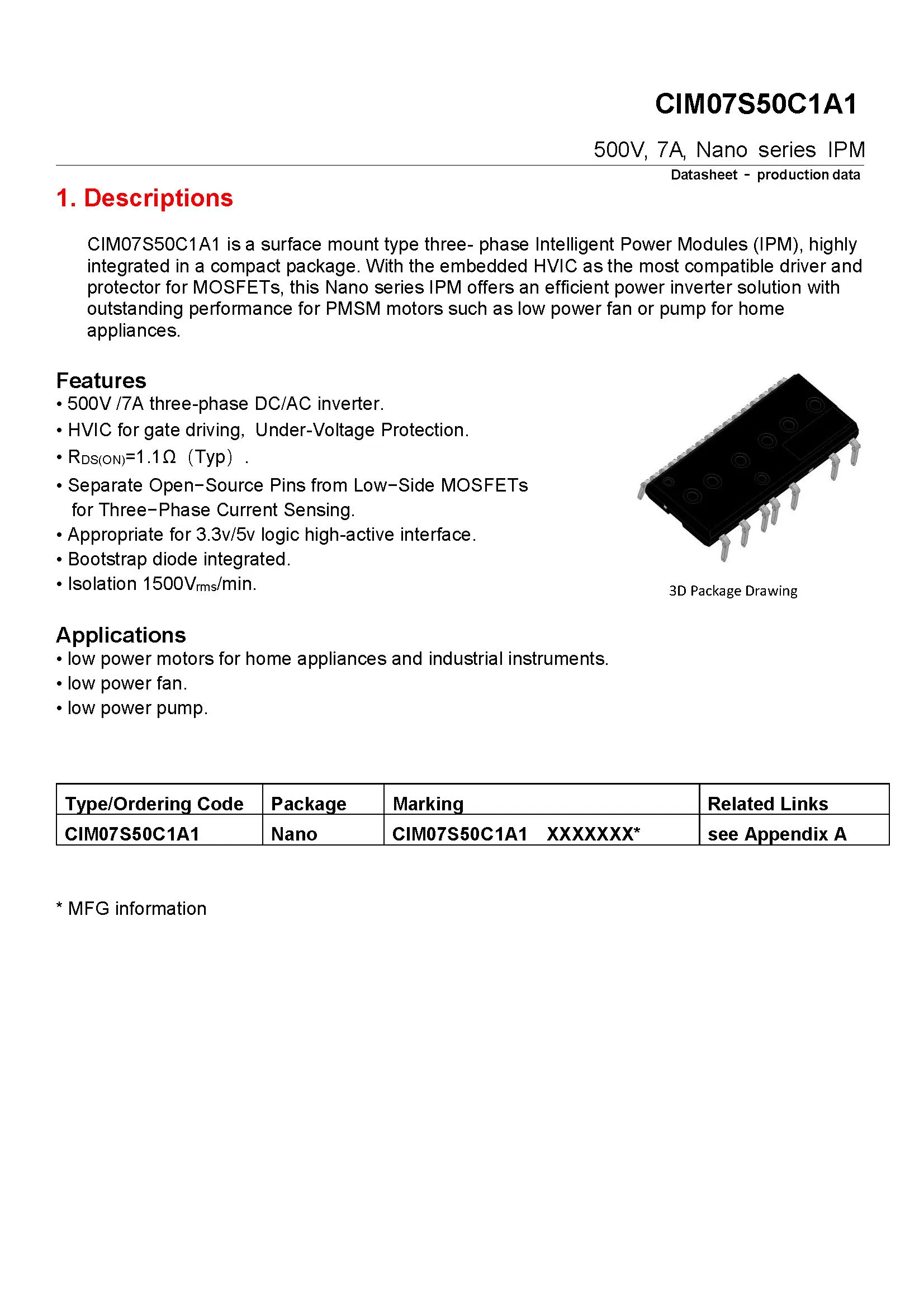

500V 7A 1.1Ω Nano series IPM (CIM07S50C1A1)

Key Features:

500V / 7A three-phase DC/AC inverter
HVIC for gate driving, Under-Voltage Protection
RDS(ON)=1.1Ω(Typ)

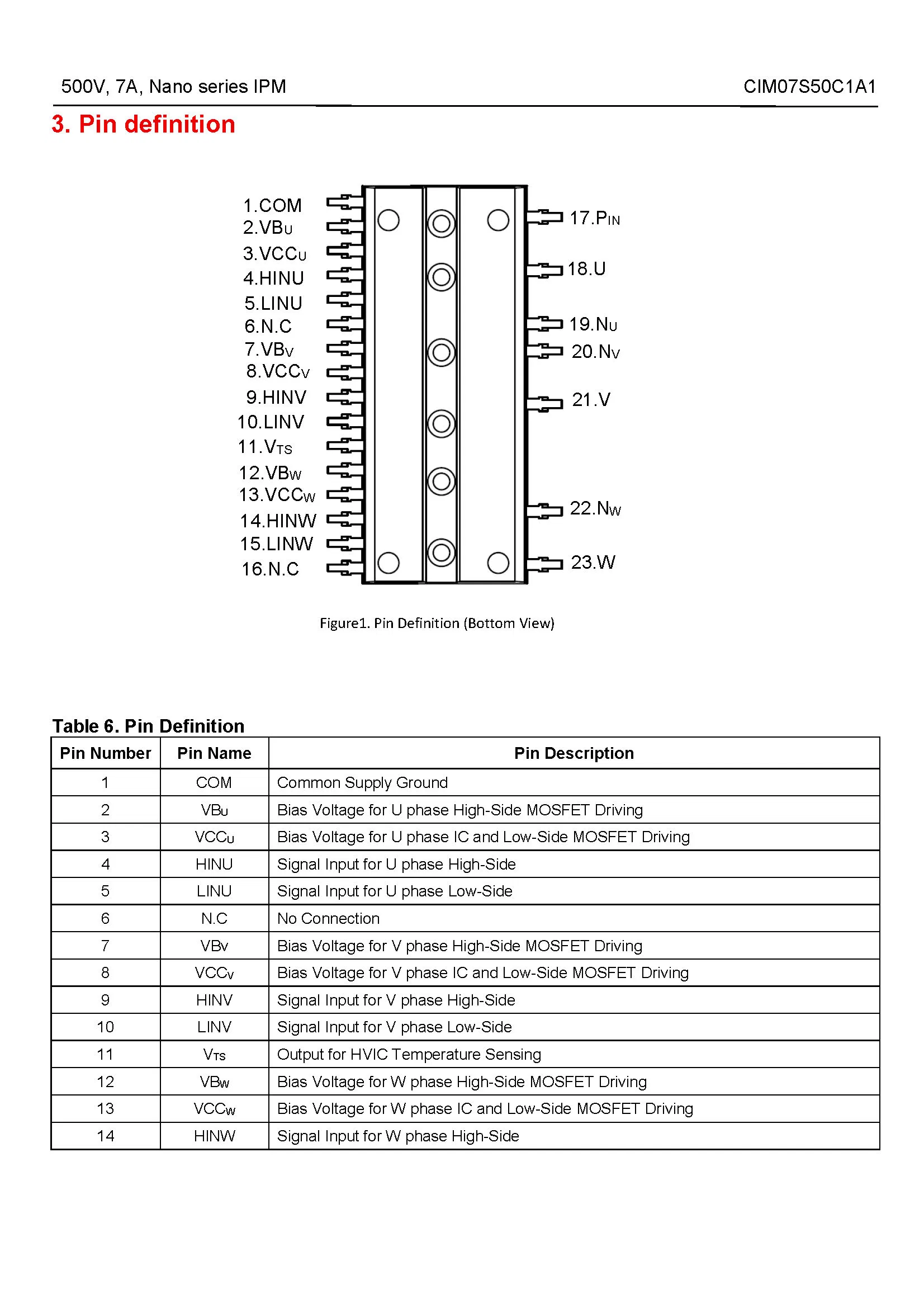

Separate Open−Source Pins from Low−Side MOSFETs for Three−Phase Current Sensing
Appropriate for 3.3v/5v logic high-active interface
Bootstrap diode integrated
Isolation 1500Vrms/min

Applications:

Low power motors for home appliances and industrial instruments
Low power fans and pumps

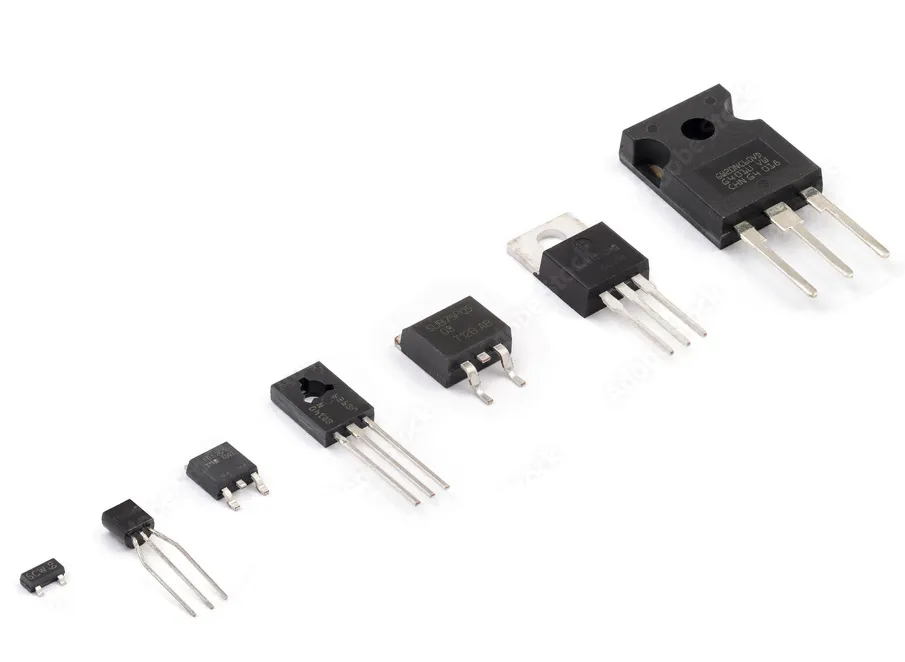

Packaging & Delivery

Package Size

1.00cm * 1.00cm * 1.00cm

Gross Weight

1.000kg

Transport Package

Plastic Package

Company Profile

Established in 2013, we are a professional supplier of semiconductor discrete device sales and technical services. Our core management team possesses extensive industry background and maintains a complete talent cultivation mechanism to ensure continuous improvement in competitiveness.

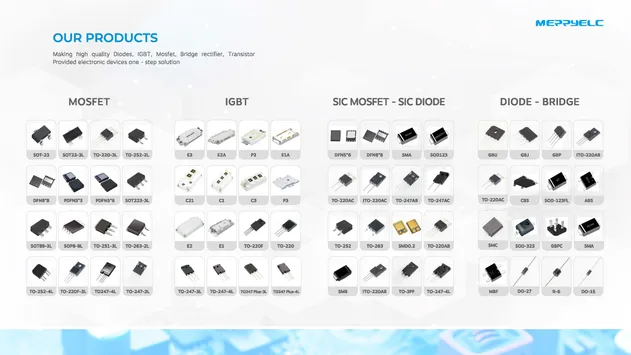

Core Product Lines:

Rectification: Ultra-fast recovery, Schottky, Zener diodes, Bridge rectifiers
Low voltage MOS and Super junction MOS
SIC diodes and SIC MOSFETs

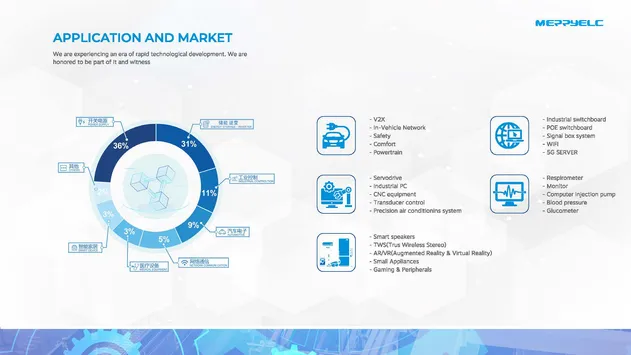

Our solutions cover switched mode power supplies (SMPS), computing, motor control, consumer electronics, mobile devices, lighting, and automotive applications.
