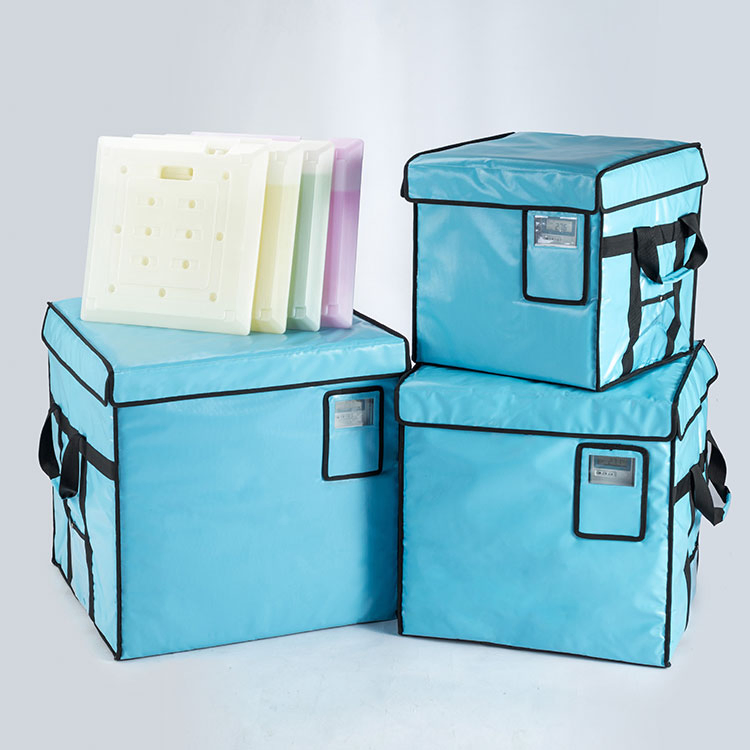

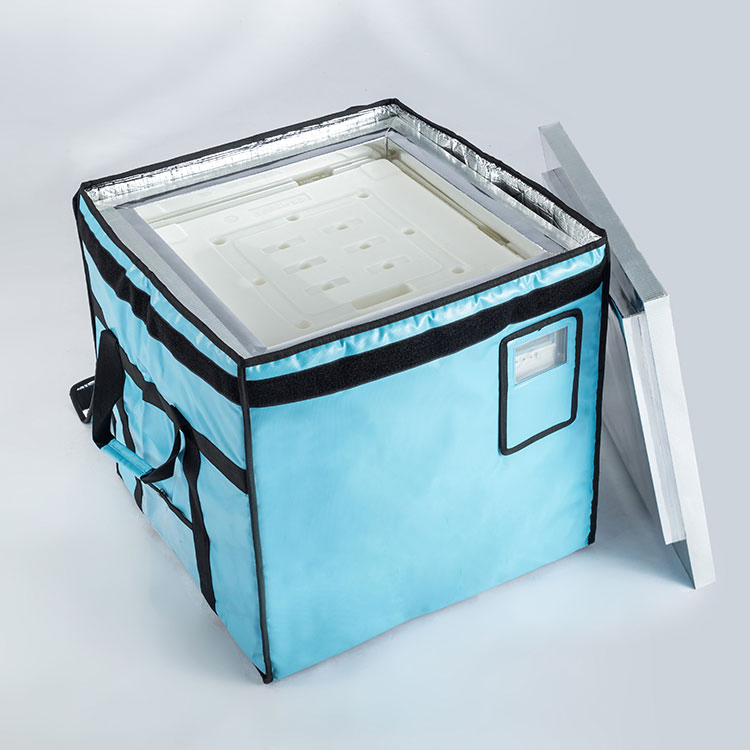

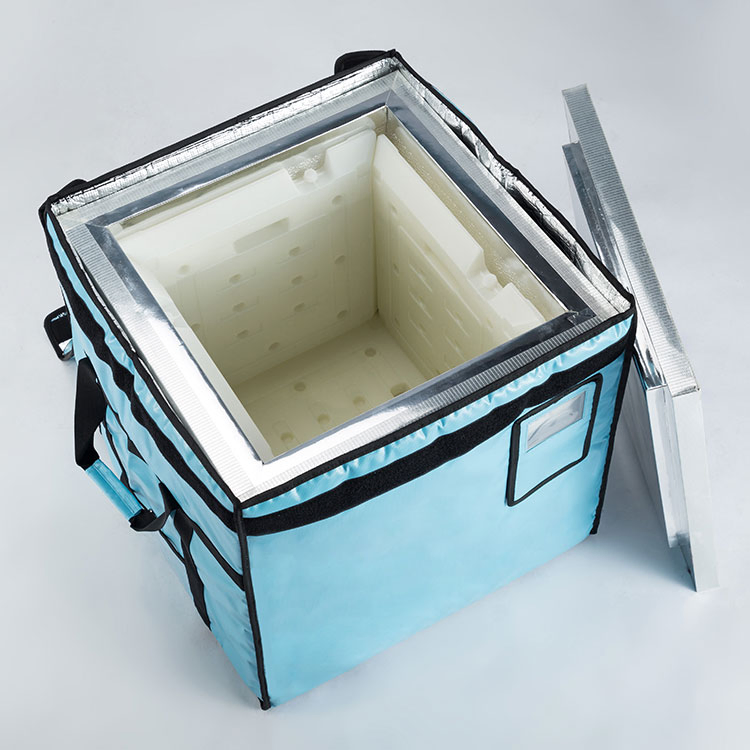

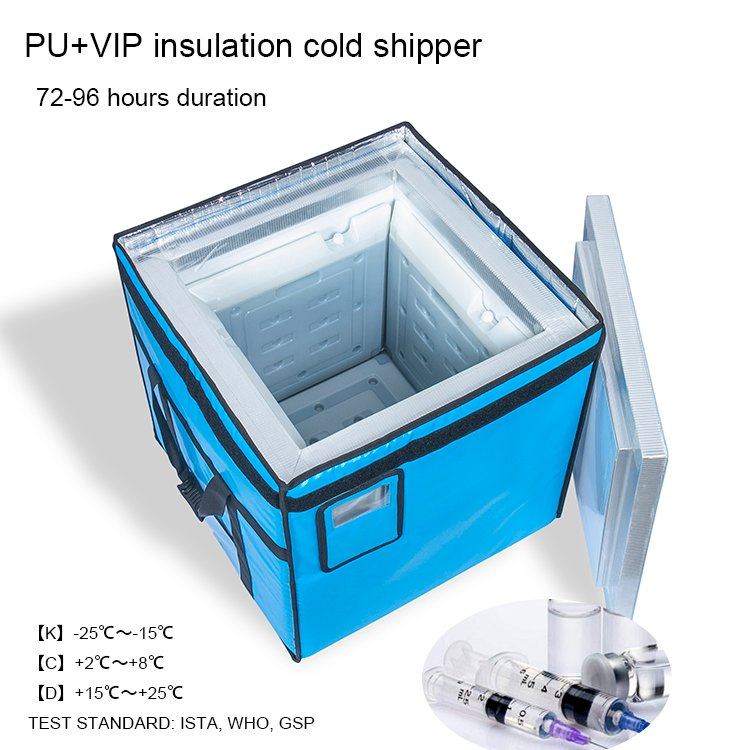

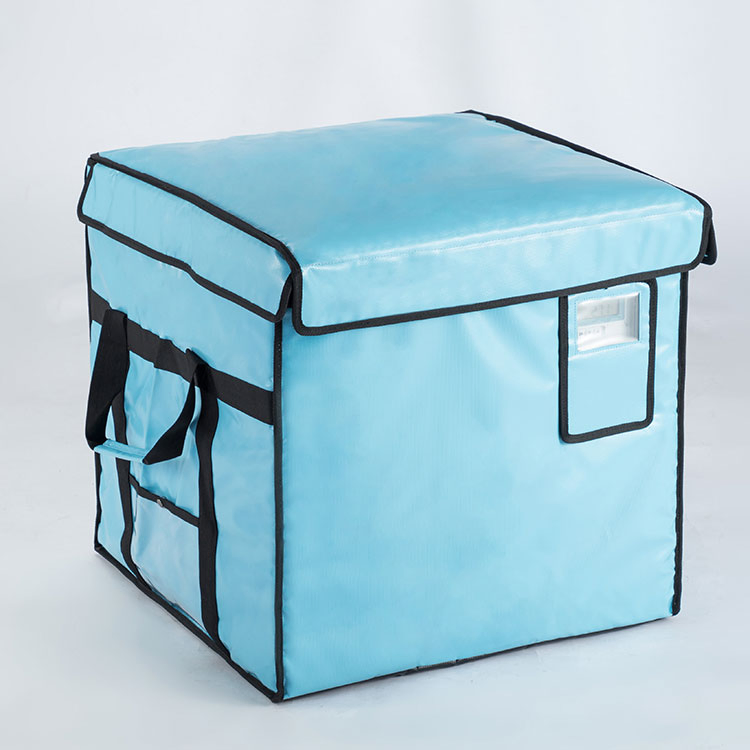

Reusable and Portable Temperature Controlled Thermall Box with 72-96 Duration for Frozen Medicine at -21 Celsius Degree
Reusable and Portable Temperature Controlled Thermall Box with 72-96 Duration for Frozen Medicine at -21 Celsius Degree
Reusable and Portable Temperature Controlled Thermall Box with 72-96 Duration for Frozen Medicine at -21 Celsius Degree
Reusable and Portable Temperature Controlled Thermall Box with 72-96 Duration for Frozen Medicine at -21 Celsius Degree
Reusable and Portable Temperature Controlled Thermall Box with 72-96 Duration for Frozen Medicine at -21 Celsius Degree
1 / 5
Reusable and Portable Temperature Controlled Thermall Box with 72-96 Duration for Frozen Medicine at -21 Celsius Degree
Reusable and Portable Temperature Controlled Thermall Box with 72-96 Duration for Frozen Medicine at -21 Celsius Degree
Reusable and Portable Temperature Controlled Thermall Box with 72-96 Duration for Frozen Medicine at -21 Celsius Degree
Reusable and Portable Temperature Controlled Thermall Box with 72-96 Duration for Frozen Medicine at -21 Celsius Degree
Reusable and Portable Temperature Controlled Thermall Box with 72-96 Duration for Frozen Medicine at -21 Celsius Degree

Reusable and Portable Temperature Controlled Thermall Box with 72-96 Duration for Frozen Medicine at -21 Celsius Degree

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

ℹ️ Basic Information
Model NO.
CS-PU5AV
Type
Box
Size
415X415X410mm
Waterproof
Waterproof
Hardness
Partial Hard
Inside Material
PU+VIP
Logo Printing
With Logo Printing
Color
Blue
Application
Cold Chain Transportation
Insulation
PU+VIP
Production Capacity
5000piece/Year
📋 Product Description

The VPU Series represents a reusable and cost-effective insulation shipper. It is powered by advanced PCM ice packs, featuring simple, proven modularity and offering year-round performance in extreme temperatures. This series encompasses 12 payload sizes and 3 temperature ranges, thereby resulting in a total of 36 solutions.

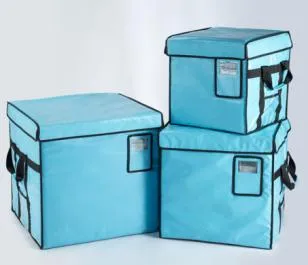

VPU Series Description

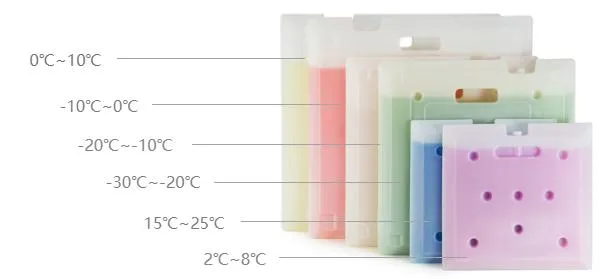

Switch Temperature Freely
Switch Temperature Freely by PCM:

[E]-30ºC~-20ºC | [B]-20ºC~-10ºC | [J]-10ºC~0ºC | [F]0ºC~+4ºC+5ºC | [C]+2ºC~+8ºC | [D]+15ºC~+25ºC

⭐ Key Features
  • Compliance with Multiple Standards: Pre-qualified in accordance with ISTA, WHO, and GSP standards.
  • Precise Temperature Control: Available ranges of 2 to 8°C, -25 to -15°C, and 15 to 25°C.
  • Advanced Monitoring: Equipped with temperature data logger, real-time alerts, and GPS tracking.
  • Sturdy and Reusable: Constructed with durable materials for repeated long-term use.

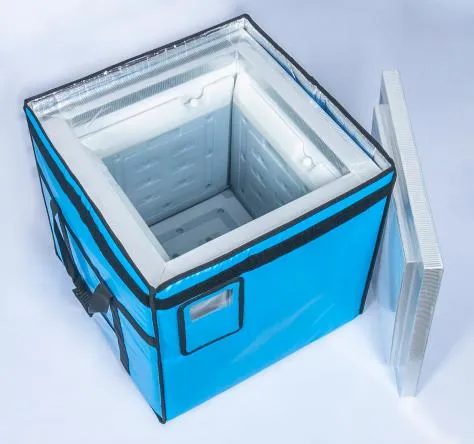

VPU Feature
🛠️ Material & Structure

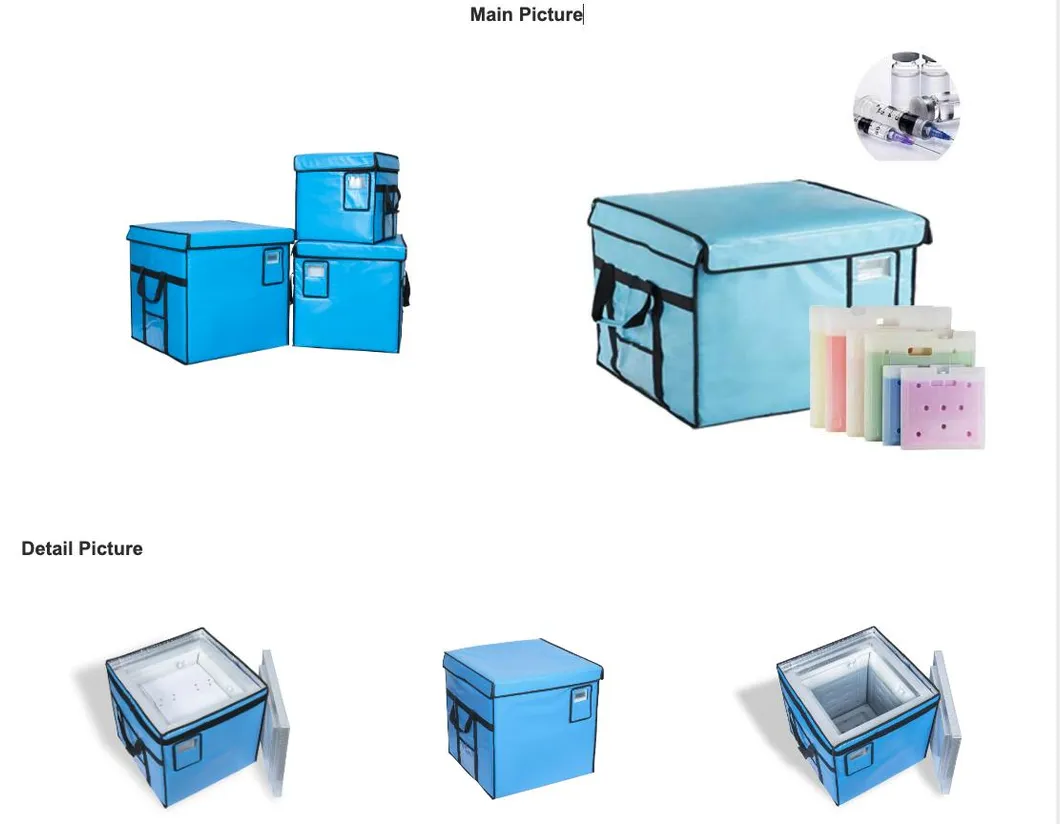

Inner Structure

Components: Inner Embossed aluminum board, Portable cooler bag, Outer shell made of PB Board, Insulation: PU, Stainless steel lock.

🚀 Applications
Applications
  • High-Value Commercial & Clinical Trial Product Shipments
  • Research & Development Shipments
  • Domestic Expedited and Local Ground Shipments
  • International Shipments to Developed & Undeveloped Countries
📊 Product Specifications
Model No. Volume O.D (Outer) I.D (Inner) Payload Size Duration
PU5AV5L375*375*375mm230*230*230mm170*170*170mm48~72 h
PU12AV12L410*410*410mm285*285*285mm230*230*230mm72~120 h
PU16AV16L465*465*465mm318*318*318mm265*265*265mm72~120 h
PU27AV27L590*375*510mm490*275*410mm450*215*360mm72~120 h
PU60BV60L585*585*585mm460*460*460mm395*395*395mm72~120 h
📈 Testing Performance

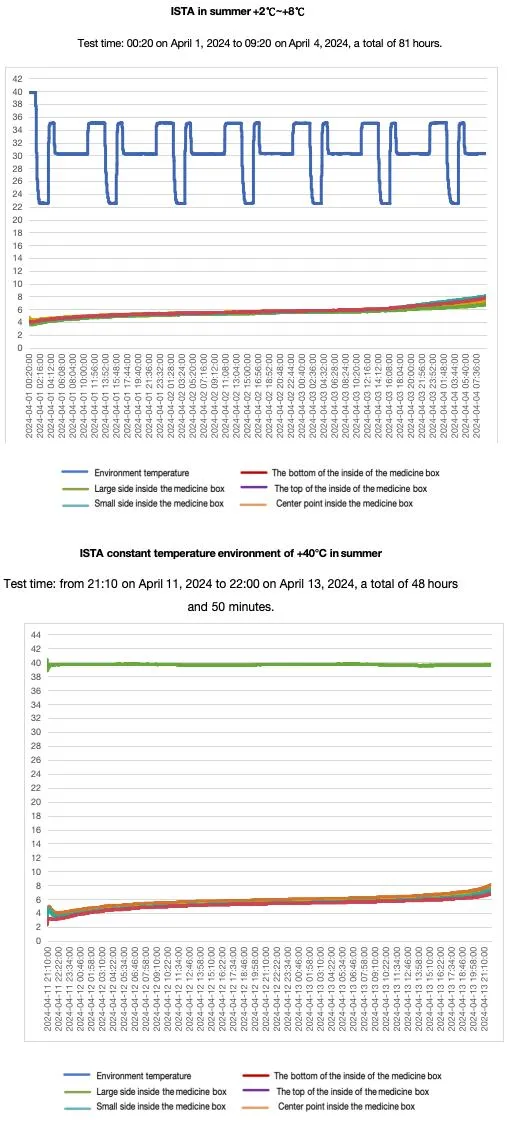

Testing 1

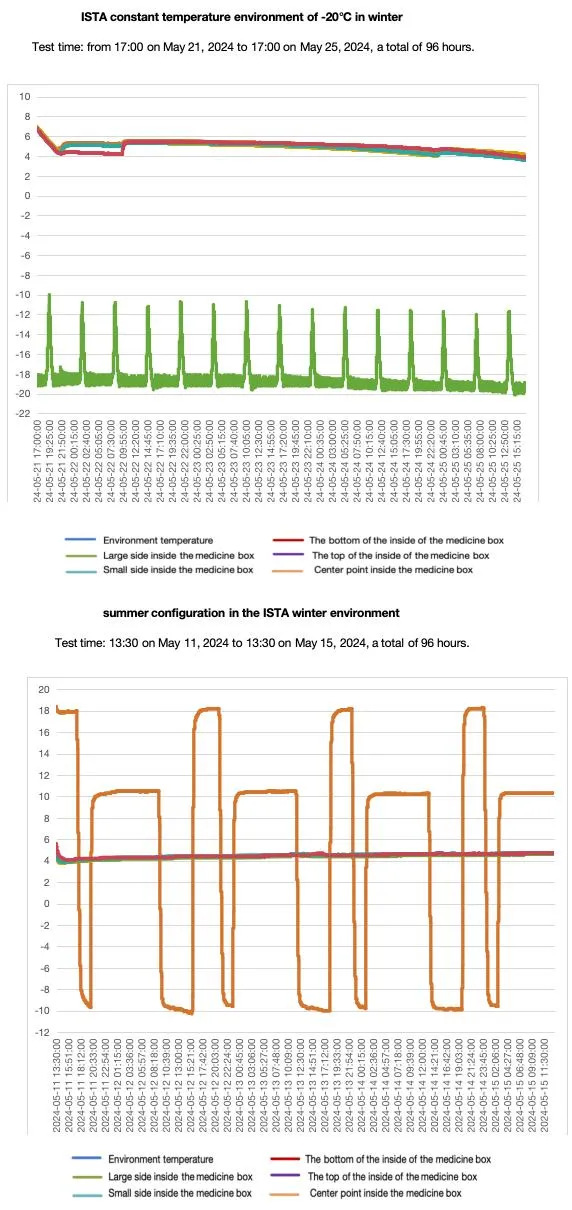

Testing 2
🏭 Manufacturing & Quality
Factory Overview

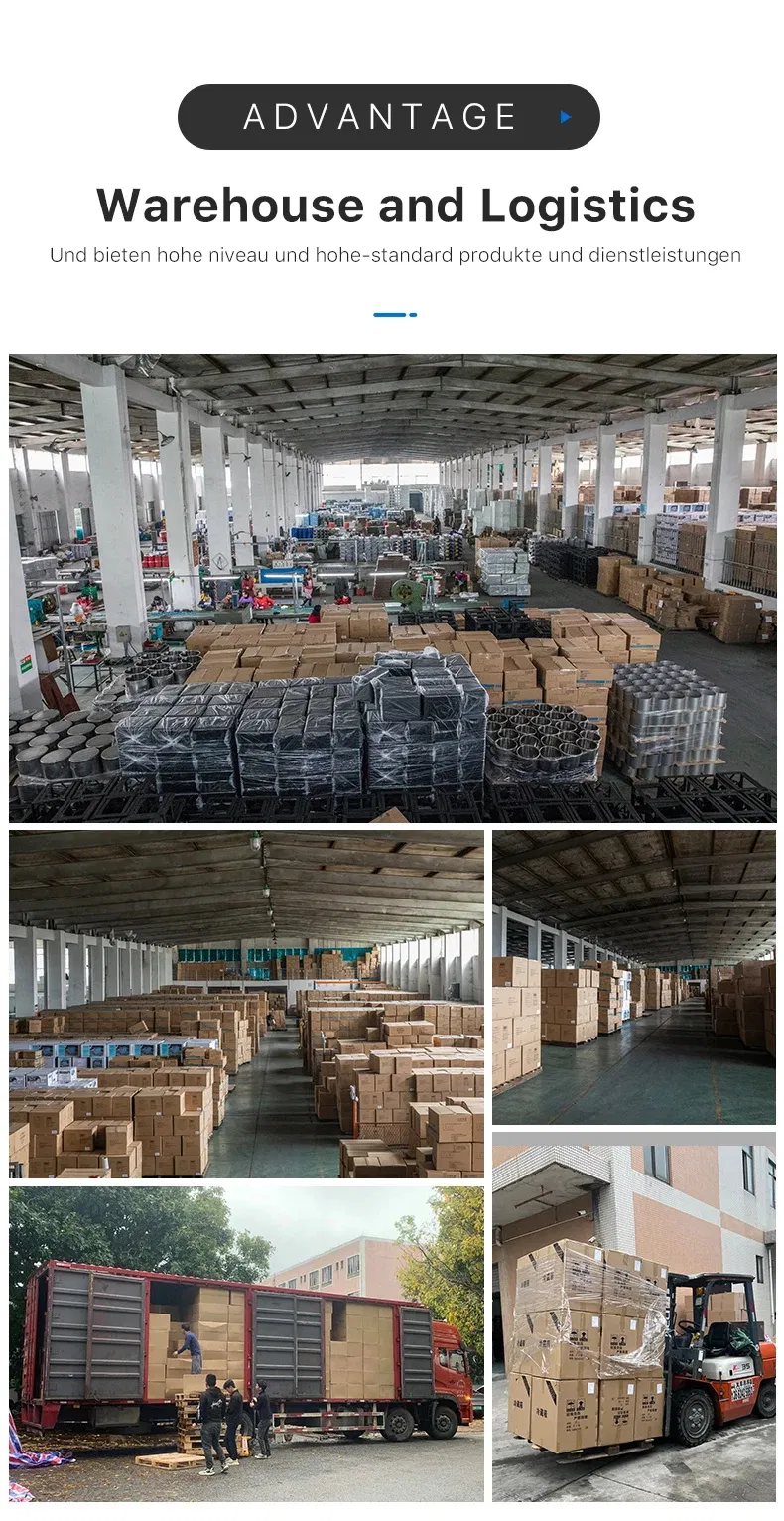

Production Base
Certificates
Frequently Asked Questions (FAQ)
Q1: What is the maximum duration for temperature maintenance?
A: Depending on the model and PCM used, the VPU series can maintain temperatures for 48 to 168 hours.
Q2: Are these thermal boxes reusable?
A: Yes, they are designed with durable materials like PU and VIP for repeated use, making them a cost-effective solution.
Q3: Can I track the temperature during transit?
A: Absolutely. The system supports data loggers, GPS tracking, and real-time alerts for over-temperature conditions.
Q4: What temperature ranges can be achieved?
A: We offer solutions ranging from -80ºC up to +60ºC using different Phase Change Materials (PCM).
Q5: Is the product compliant with international standards?
A: Yes, our products are pre-qualified according to ISTA, WHO, and GSP standards.
Q6: Can the size and color be customized?
A: Yes, size and color can be customized to meet specific shipping requirements.
