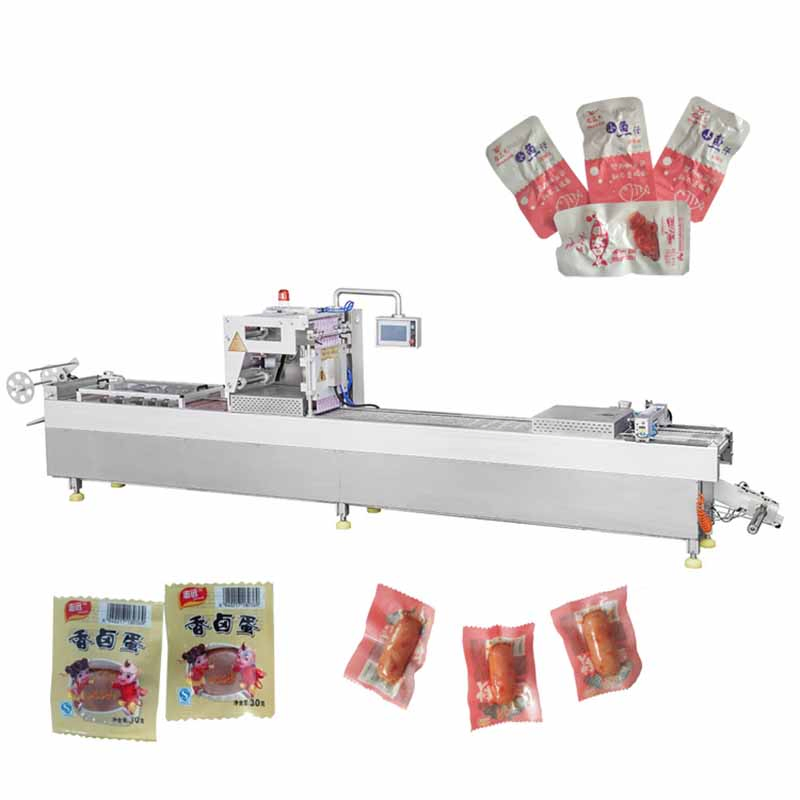

Thermoforming Vacuum Packing Machine/Sandwich Packing Machine/Ex-Factory Price Original Package Can Be Customized

Customization: Available
After-sales Service: Provide
Warranty: Provide

Product Description

Basic Information
Automatic Grade
Automatic
Application
Plastic Tube Filling Sealing Machine
Type
Filling Sealing Machine
Forming Function
Filling, Seal
Driven Type
Electric
Material Type
Cream
Packaging Material
Film
HS Code
8422303090
Production Capacity
6-12 Bags/Min
Product Description

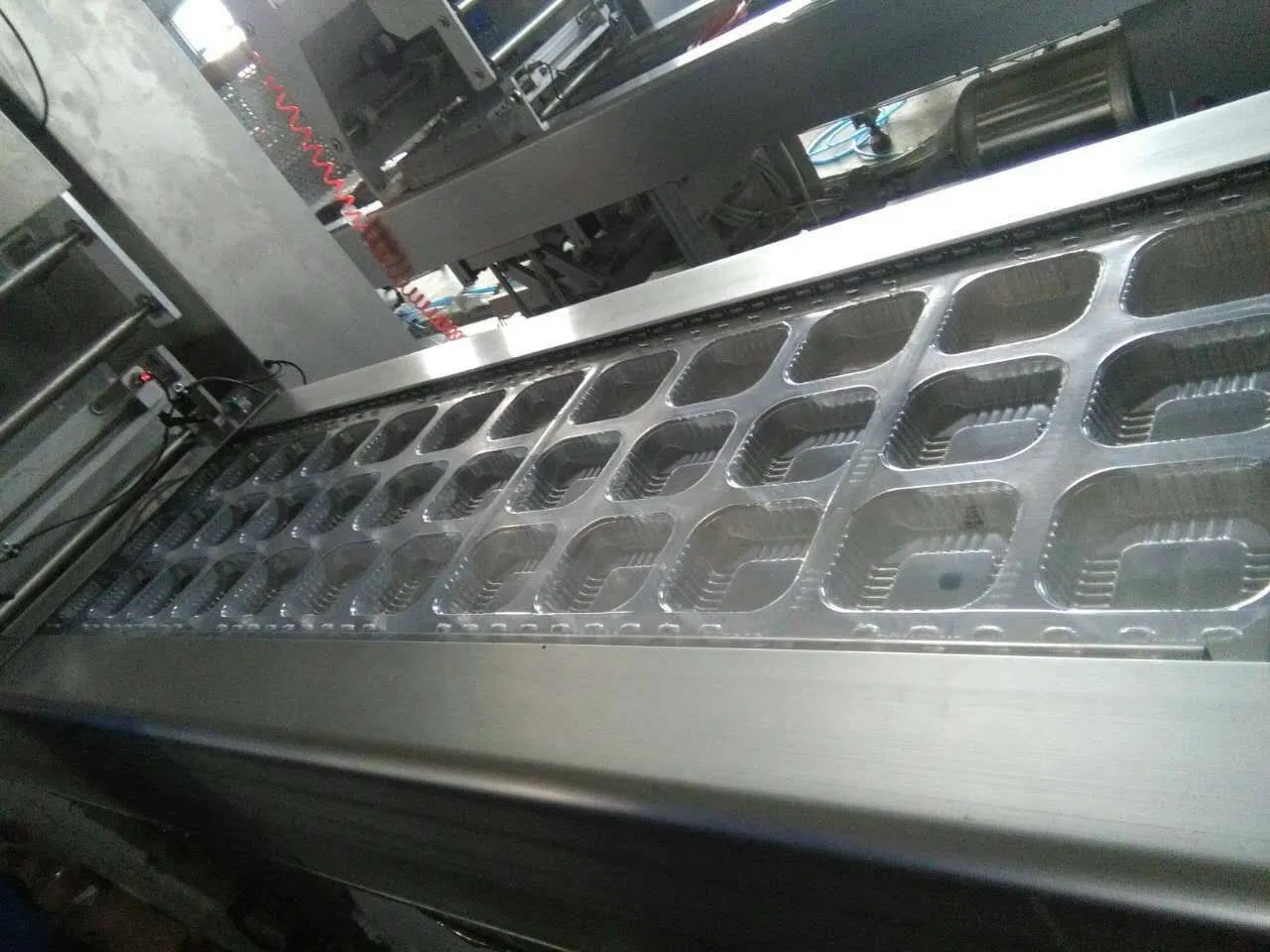

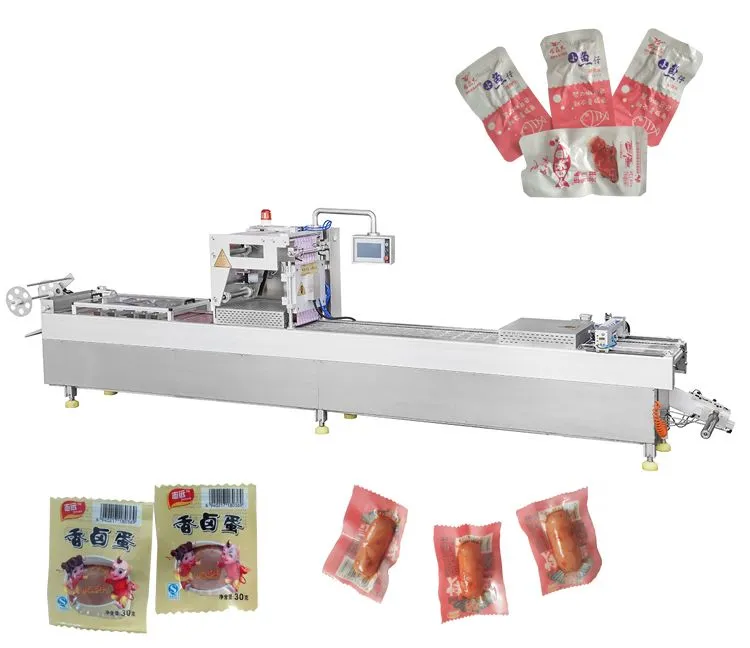

Automatic Thermoforming Stretch Film Continuous Vacuum Packaging Sealing Machine for Corn Cake, Chicken, Pizza, Beef. This equipment uses extruded and thermoplastic film or sheet as raw material to make containers, and then performs vacuum and atmosphere sealing with film or sheet after filling material. It integrates the functions of film drawing molding, filling material, vacuum pumping, air conditioning, heat sealing, and cutting.
Main Features

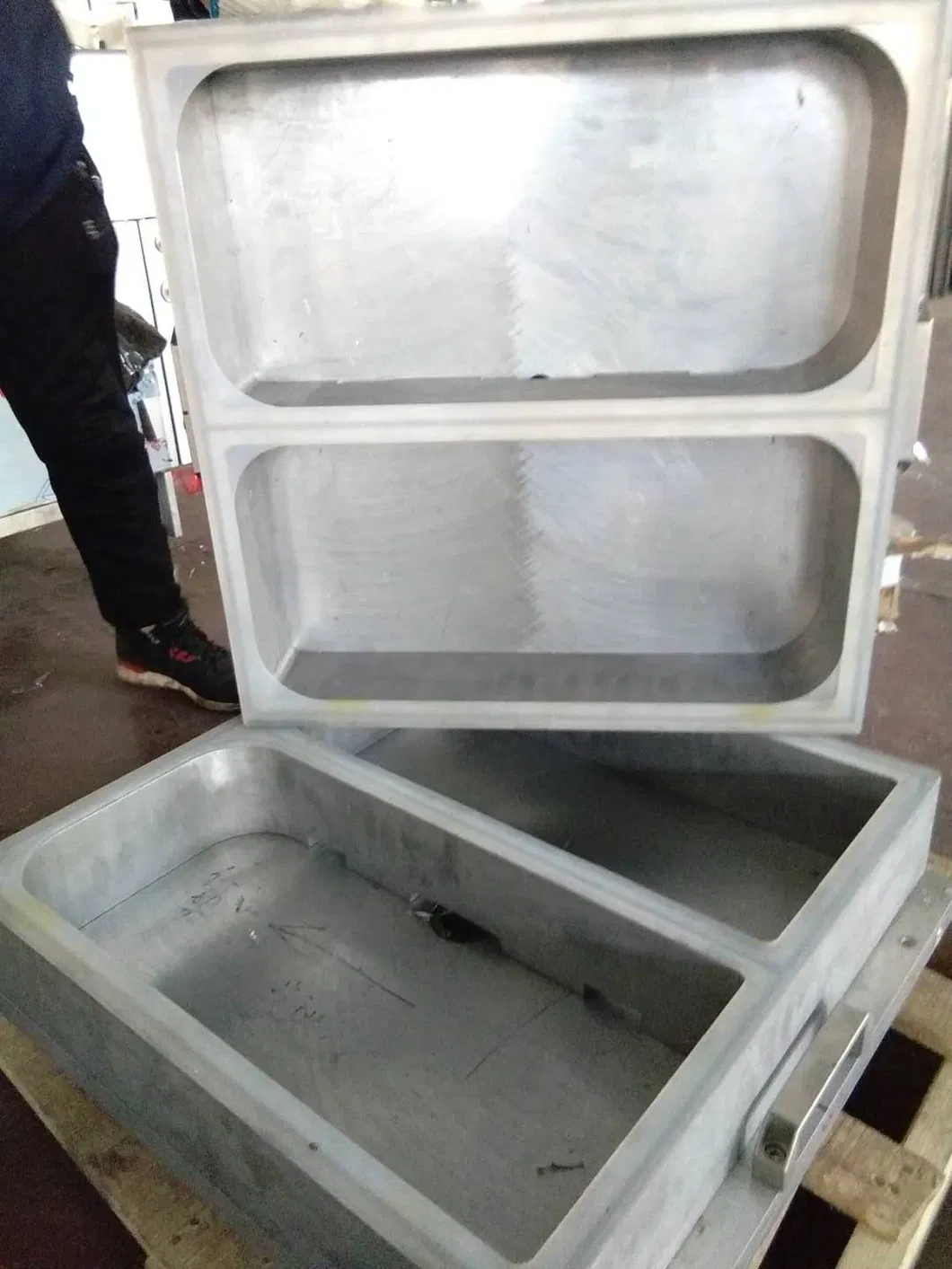

The mold is of more reasonable design; upper and lower parts are separated for high strength, corrosion resistance, and convenient assembly.
Packing machine frame is made of aluminum alloy sections, one-step molding with high strength and corrosion resistance.
Waste recycling system is equipped with torque adjustable motor, making the scrap recycling process cleaner, quieter and more convenient.
Equipped with electric protection to prevent default/anti-phase, high/low voltage, or electric leakage. Safety switches and protection covers are installed in all chambers.

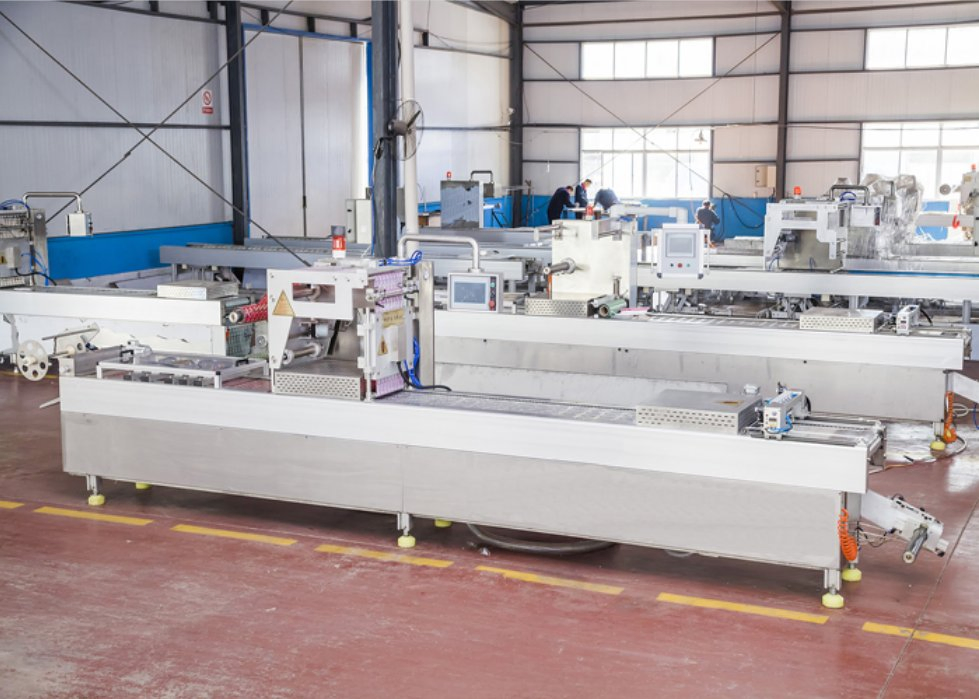

Detailed Photos
Product Parameters
Model LZ-320
Capacity (148*190mm bag)12 bags per minute
Size of the chamber (mm)(200~240)*286
Upper Membrane Width (mm)297
Lower Membrane Width (mm)322
Total Weight (ton)1.2
Forming Temperature60~120
Forming Pressure1.5~2.5MP
Vacuum≤200Pa
Machine Dimension (mm)4500*700*1800
Total Power7KW

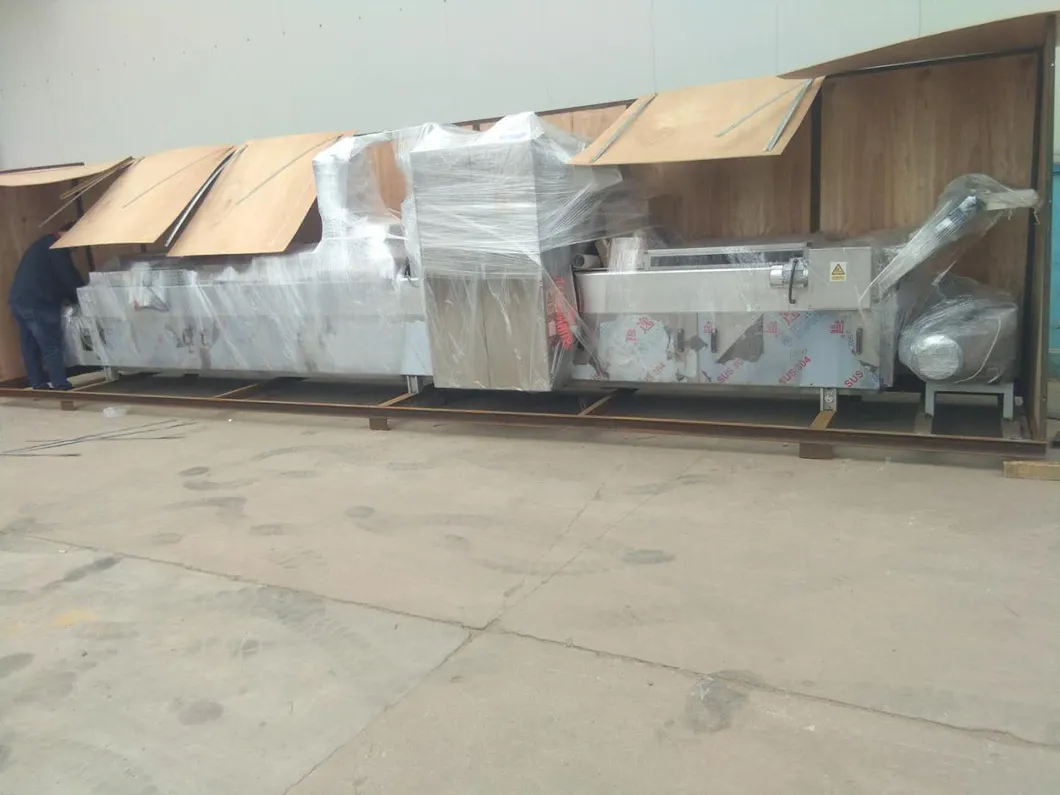

Packaging & Shipping
Frequently Asked Questions
What products can this machine package?
It is suitable for food (meat, aquatic products, pastries, cooked food), medical equipment (syringes, surgical clothing), and various commodities.
What is the production capacity of the LZ-320 model?
The machine can produce approximately 6-12 bags per minute depending on the bag size and material.
Does the machine support customized packaging sizes?
Yes, the thermoforming process allows for flexible container creation based on the mold design.
What are the safety features included?
It includes electric leakage protection, anti-phase protection, high/low voltage protection, and safety switches on all processing chambers.
What kind of power supply is required?
The standard power supply requirement for this machine is 380V/50HZ.
Is the waste material recycled during the process?
Yes, the machine is equipped with a dedicated scrap recycling system with a torque-adjustable motor for clean and quiet operation.
